Same model may have multiple batches, images only for reference.

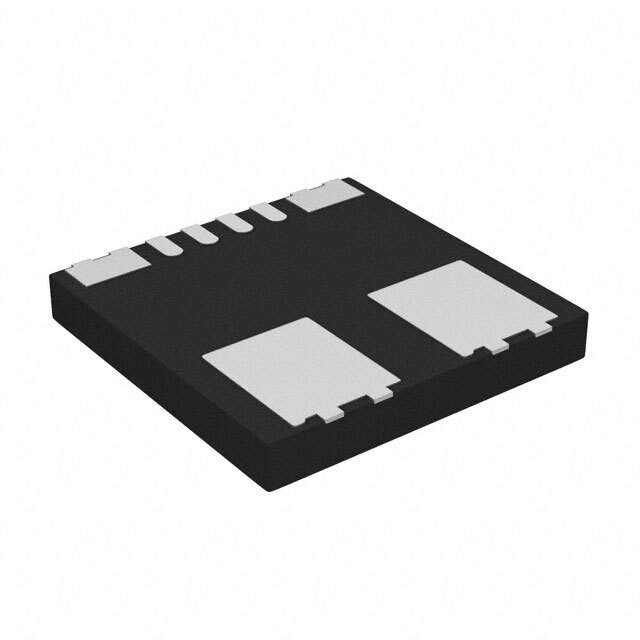

TLI4970D050T4XUMA1 Real Image
Same model may have multiple batches, images only for reference.

TLI4970D050T4XUMA1

Part No TLI4970D050T4XUMA1
Manufacturer Infineon Technologies
Catalog Current Transducers
Description SENSOR CURRENT HALL 50A 8TISON  /  Current Sensor 50A 1 Channel Hall Effect, Differential Bidirectional 8-PowerTDFN
Datasheet
TLI4970D050T4XUMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Current Sensors
Mfr Infineon Technologies
Series Automotive, AEC-Q100
Package Tape & Reel
Product Status Obsolete
For Measuring AC/DC
Sensor Type Hall Effect, Differential
Current - Sensing 50A
Number of Channels 1
Output SPI
Frequency DC ~ 18kHz
Linearity ±1.6%
Accuracy ±0.05%
Voltage - Supply 3.1V ~ 3.5V
Response Time 57µs
Current - Supply (Max) 20mA
Temperature Range - Operating -40°C ~ 85°C
Polarization Bidirectional
Mounting SMD (SMT)
Package / Case 8-PowerTDFN
Supplier Device Package PG-TISON-8-1
Base Product Number TLI4970
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 2156-TLI4970D050T4XUMA1,TLI4970-D050T4-ND,SP000917088,INFINFTLI4970D050T4XUMA1,TLI4970-D050T4,TLI4970D050T4XUMA1DKR,TLI4970D050T4XUMA1CT,TLI4970D050T4XUMA1TR
Standard Package 2,000
Win Source Part Number 1221502-TLI4970D050T4XUMA1
Ultra Librarian 3D Model Ultra Librarian TLI4970D050T4XUMA1 CAD Model

Description

The TLI4970D050T4XUMA1 is a current sensor designed for use in AC/DC applications.

  • GPTDescription: It is a hall effect, differential sensor with a bidirectional polarization.
  • GPTDescription: The current sensing is 50A, with a linearity of ±1.6% and an accuracy of ±0.05%.
  • GPTDescription: The voltage supply is between 3.1V and 3.5V, and the output is SPI.
  • GPTDescription: The package is 8-PowerTDFN, and the supplier device package is PG-TISON-8-1.
  • GPTDescription: The temperature range for operating is -40°C to 85°C.
  • GPTDescription: This Infineon Technologies current sensor is part of the automotive, AEC-Q100 series and comes in tape and reel packaging with 2,000 standard pieces.
