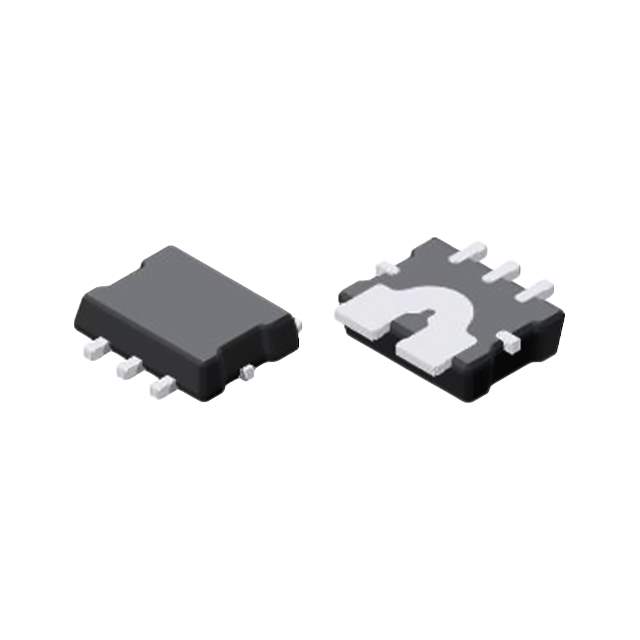

ACS780LLRTR-100U-T

Name: ACS780LLRTR-100U-T
Brand: Allegro MicroSystems, LLC
SKU: 1235502
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ACS780LLRTR-100U-T
Manufacturer	Allegro MicroSystems, LLC
Catalog	Current Transducers
Description	SENSOR CUR HALL 100A 7POWERSMD / Current Sensor 100A 1 Channel Hall Effect, Differential Unidirectional 7-PowerSMD Module
Datasheet	ACS780LLRTR-100U-T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Sensors, Transducers>Current Sensors
Mfr	Allegro MicroSystems
Series	Automotive, AEC-Q100
Package	Tape & Reel
For Measuring	DC
Sensor Type	Hall Effect, Differential
Current - Sensing	100A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	40mV/A
Frequency	DC ~ 120kHz
Linearity	±1%
Accuracy	±1.5%
Voltage - Supply	4.5V ~ 5.5V
Response Time	3.6µs
Current - Supply (Max)	15mA
Temperature Range - Operating	-40°C ~ 150°C
Polarization	Unidirectional
Mounting	SMD (SMT)
Package / Case	7-PowerSMD Module
Supplier Device Package	7-PSOF
Base Product Number	ACS780
Other Names	620-1820-6,620-1820-1,620-1820-2
Standard Package	3,000
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	1235502-ACS780LLRTR-100U-T
Ultra Librarian 3D Model	Ultra Librarian ACS780LLRTR-100U-T CAD Model

Alternative Products

Description

The Allegro MicroSystems, LLC ACS780LLRTR-100U-T is an electronic component that is designed for use in current sensing applications.

Series: ACS780
Supply and Demand Status: Balanced
Sensitivity: 40mV/A
Current: Up to 100A
Output: Ratiometric Voltage
Polarization: Unidirectional
Response Time: 3.6μs
Frequency Range: DC to 120kHz
Standard Package: 3,000
Operating Temperature: -40°C to 150°C
