Same model may have multiple batches, images only for reference.

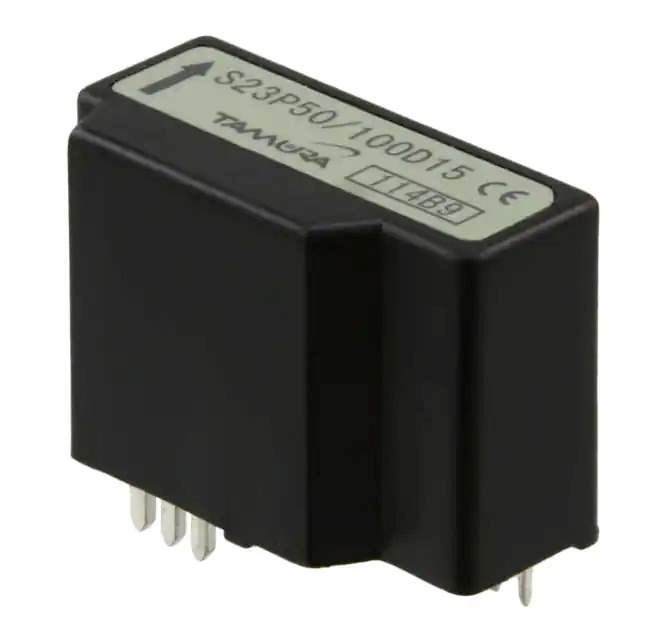

S23P50/100D15 Real Image
Same model may have multiple batches, images only for reference.

S23P50/100D15

Part No S23P50/100D15
Manufacturer Tamura
Catalog Current Transducers
Description SENSOR CURRENT HALL 50A AC/DC / Current Sensor 50A 1 Channel Hall Effect, Closed Loop Bidirectional Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Current Sensors
Mfr Tamura
Series S23PXXXD15
Package Bulk
Product Status Active
For Measuring AC/DC
Sensor Type Hall Effect, Closed Loop
Current - Sensing 50A
Number of Channels 1
Output Ratiometric, Current
Frequency DC ~ 100kHz
Linearity ±0.15%
Accuracy ±0.25%
Voltage - Supply ±12V ~ 15V
Response Time 0.5µs
Current - Supply (Max) 25mA
Temperature Range - Operating -40°C ~ 85°C
Polarization Bidirectional
Mounting Type Through Hole
Package / Case Module
Standard Package 400 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 9030.33.3800
Win Source Part Number 932627-S23P50/100D15
Ultra Librarian 3D Model Ultra Librarian S23P50/100D15 CAD Model

Description

The Tamura 932627-S23P50/100D15 is a current sensor designed for measuring AC/DC currents up to 50A.

  • Type: Current Sensor
  • Technology: Closed Loop, Hall Effect
  • Current Measurement Range: Up to 50A AC/DC
  • Sensitivity: ±0.15%
  • Accuracy: ±0.25%
  • Response Time: 0.5μs
  • Supply Voltage: ±12V to 15V
  • Supply Current (Max): 25mA
  • Package: Module
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C to 85°C
  • Product Status: Active
  • Category: Sensors, Transducers - Current Sensors
