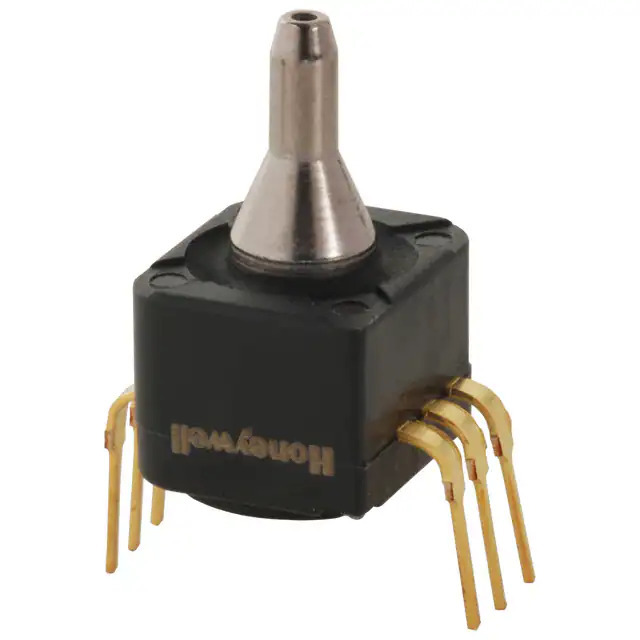

40PC500G2A Honeywell
Same model may have multiple batches, images only for reference.

40PC500G2A

Part No 40PC500G2A
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 500PSIG 0.18" 4.5V / Pressure Sensor 500PSI (3447.38kPa) Vented Gauge Male - 0.18" (4.57mm) Tube 0.5 V ~ 4.5 V 6-DIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series 40PC
Package Tube
Product Status Active
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 500PSI (3447.38kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±3%
Voltage - Supply 4.75V ~ 5.25V
Port Size Male - 0.18" (4.57mm) Tube
Port Style Barbless
Features Amplified Output
Termination Style PC Pin
Maximum Pressure 1000PSI (6894.76kPa)
Temperature Range - Operating -45°C ~ 125°C
Mounting Type Through Hole
Package / Case 6-DIP Module
Supplier Device Package -
Base Product Number 40PC500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1352949-40PC500G2A
Ultra Librarian 3D Model Ultra Librarian 40PC500G2A CAD Model

Description

The Honeywell Sensing and Productivity Solutions 40PC series pressure sensor, model 40PC500G2A, is a reliable and accurate sensor designed for board mount applications.

  • Series: 40PC
  • Output: Amplified
  • Voltage Supply: 4.75V to 5.25V
  • Output Voltage: 0.5V to 4.5V
  • Accuracy: ±3%
  • Pressure Type: Vented Gauge
  • Operating Pressure: 500PSI (3447.38kPa)
  • Maximum Pressure: 1000PSI (6894.76kPa)
  • Mounting Type: Through Hole
  • Packaging: Tube
  • Application: Board Mount
  • Status: Active
