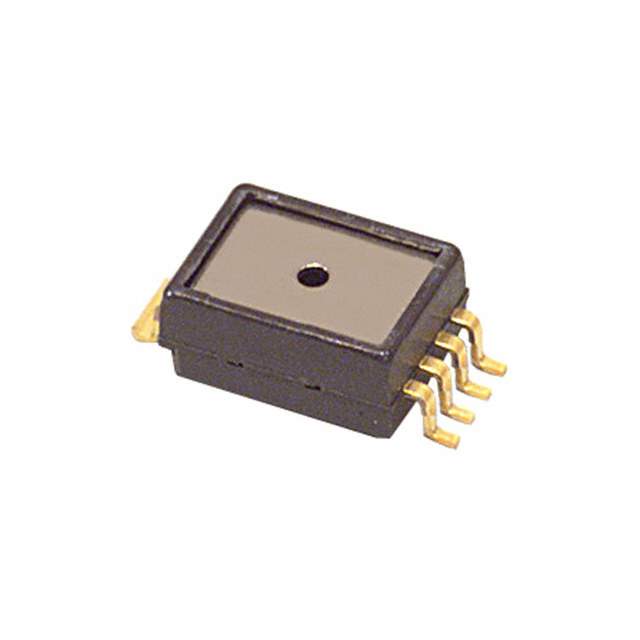

NXP MPXM2010DT1 Pressure Sensor

The NXP MPXM2010DT1 is a state-of-the-art pressure sensor designed for a vast range of applications that require accurate and reliable pressure measurements. This compact sensor is part of NXP's MPX series and is well-suited for systems that monitor pressure in industrial, automotive, and consumer electronics contexts.

Key Features

• Pressure Range: The MPXM2010DT1 is capable of measuring differential pressures ranging from 0 to 10 kPa, making it versatile for various low-pressure applications.
• High Sensitivity: With its built-in signal conditioning, the sensor offers an impressive sensitivity of 1.0 mV/kPa, enabling it to detect even the slightest changes in pressure with high accuracy.
• Temperature Compensated: The device includes temperature compensation from -40°C to +125°C, ensuring consistent performance across a broad range of operating conditions.
• Small Footprint: The MPXM2010DT1 comes in a compact 5-pin surface mount package, making it easy to integrate into space-constrained designs.
• Robust Design: It is designed to withstand exposure to common environmental factors such as dust and humidity, ensuring long-term reliability and durability.

Applications

The versatility of the MPXM2010DT1 allows it to be used in a variety of applications, including:

• Medical devices such as respiratory equipment and blood pressure monitors
• Environmental systems for air pressure monitoring
• Industrial control systems for process monitoring and control
• Automotive systems, including tire pressure monitoring and engine diagnostics
• Consumer appliances like vacuum cleaners and air conditioners

Technical Specifications

The sensor operates on a supply voltage of 10 V and has a maximum current consumption of 6 mA. Its output is directly proportional to the pressure applied, and it can interface with various types of electronics, including microcontrollers and analog-to-digital converters, through its analog output.

In summary, the NXP MPXM2010DT1 is a highly reliable and precise pressure sensor that is perfect for developers and engineers looking to incorporate pressure sensing capabilities into their designs. Its robustness and precision make it an ideal choice for a wide range of pressure-sensing applications.
