Same model may have multiple batches, images only for reference.

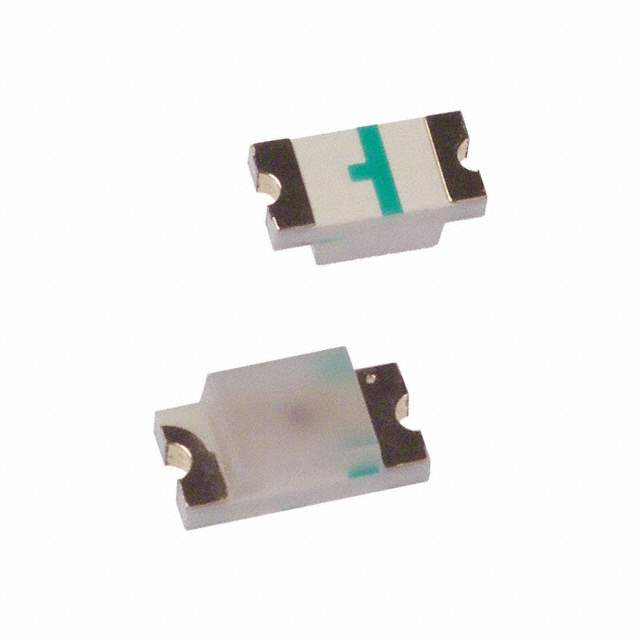

HSMH-C150 Real Image
Same model may have multiple batches, images only for reference.

HSMH-C150

Part No HSMH-C150
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED Uni-Color Red 660nm 2-Pin Chip LED T/R / LED RED DIFFUSED 1206 SMD
Datasheet
HSMH-C150 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Color Red
Lens Color White
Lens Transparency Diffused
Millicandela Rating 17mcd
Lens Style/Size Rectangle with Flat Top, 2.00mm x 1.60mm
Forward Voltage 1.8V
Current - Test 20mA
Viewing Angle 170°
Mounting SMD (SMT)
Wavelength - Dominant 639nm
Wavelength - Peak 660nm
Case / Package Chip LED
Height (Max) 1.10mm
Win Source Part Number 095639-HSMH-C150
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name HSMH-C150
Introduction Date January 01, 2002
ECCN EAR99
Country of Origin Taiwan, China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian HSMH-C150 CAD Model

Description

The Broadcom Limited HSMH-C150 chip LED is a surface mount device.

  • Forward Voltage: 1.8V
  • Viewing Angle: 170°
  • Millicandela Rating: 17mcd
  • Current-Test: 20mA
  • Wavelength-Dominant: 639nm
  • Wavelength-Peak: 660nm
  • Lens Color: White
  • Lens Transparency: Diffused
  • Package: Rectangle with flat top, 2.00mm x 1.60mm
  • Market Popularity: Popular
