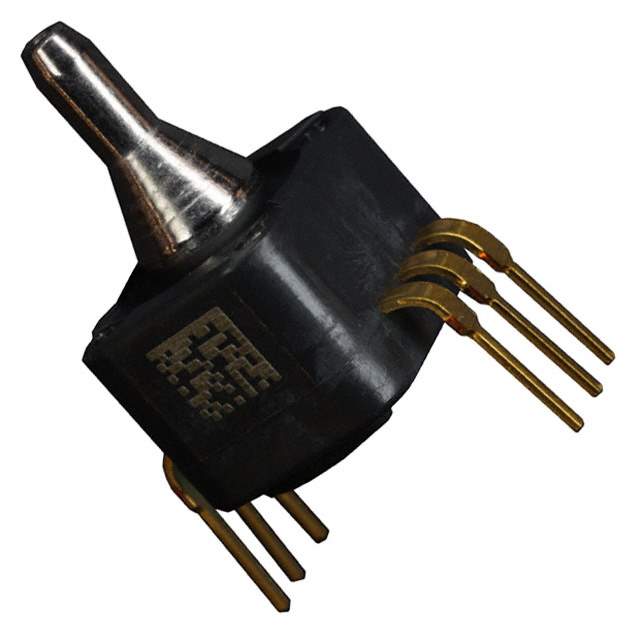

40PC015G2A Real Image
Same model may have multiple batches, images only for reference.

40PC015G2A

Part No 40PC015G2A
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 15PSIG 0.18" 4.5V / Pressure Sensor 15PSI (103.42kPa) Vented Gauge Male - 0.18" (4.57mm) Tube 0.5 V ~ 4.5 V 6-DIP Module
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series 40PC
Package Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 15PSI (103.42kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±4%
Voltage - Supply 4.75V ~ 5.25V
Port Size Male - 0.18" (4.57mm) Tube
Port Style Barbless
Features Amplified Output
Termination Style PC Pin
Maximum Pressure 45PSI (310.26kPa)
Temperature Range - Operating -45°C ~ 125°C
Mounting Type Through Hole
Package / Case 6-DIP Module
Base Product Number 40PC015
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1349201-40PC015G2A
Ultra Librarian 3D Model Ultra Librarian 40PC015G2A CAD Model

Description

The Honeywell 40PC015G2A pressure sensor is an amplified output sensor that is perfect for board mounting applications.

  • Sensor Type: Amplified Output
  • Output: Analog Voltage (0.5V ~ 4.5V)
  • Accuracy: ±4%
  • Pressure Type: Vented Gauge
  • Operating Pressure: 15PSI (103.42kPa)
  • Maximum Pressure: 45PSI (310.26kPa)
  • Voltage Supply: 4.75V ~ 5.25V
  • Operating Temperature: -45°C ~ 125°C
  • Package: 6-DIP Module
  • RoHS Compliant: Yes
