Same model may have multiple batches, images only for reference.

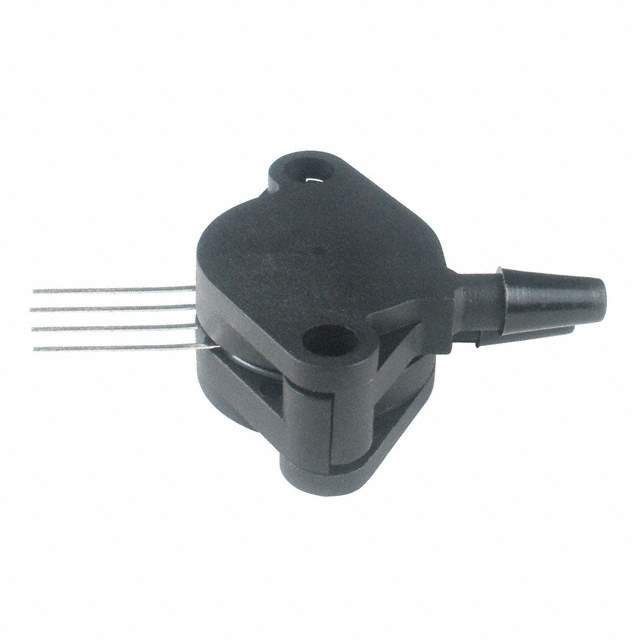

NSCSHHN015PDUNV Real Image
Same model may have multiple batches, images only for reference.

NSCSHHN015PDUNV

Part No NSCSHHN015PDUNV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 15PSID 0.16" .155V 4SIP / Pressure Sensor ±15PSI (±103.42kPa) Differential Male - 0.16" (3.94mm) Tube, Dual 0 mV ~ 155 mV (5V) 4-SIP, Dual Ports, Same Side
Datasheet
NSCSHHN015PDUNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® NSC
Package Bulk
Applications Board Mount
Pressure Type Differential
Operating Pressure ±15PSI (±103.42kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 155 mV (5V)
Accuracy ±0.25%
Voltage - Supply 1.5V ~ 12V
Port Size Male - 0.16" (3.94mm) Tube, Dual
Port Style Barbed
Termination Style PC Pin
Maximum Pressure ±30PSI (±206.84kPa)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 4-SIP, Dual Ports, Same Side
Supplier Device Package 4-SIP
Base Product Number NSCSHHN
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1349838-NSCSHHN015PDUNV
Ultra Librarian 3D Model Ultra Librarian NSCSHHN015PDUNV CAD Model

Description

The Honeywell TruStability NSC pressure sensor is a high-accuracy, Wheatstone bridge output sensor that is temperature compensated from Honeywell Sensing and Productivity Solutions.

  • Pressure Type: Differential
  • Operating Pressure: ±15PSI (±103.42kPa)
  • Port Size: Male - 0.16" (3.94mm) Tube, Dual
  • Port Style: Barbed
  • Maximum Pressure: ±30PSI (±206.84kPa)
  • Voltage Supply: 1.5V ~ 12V
  • Mounting Type: Through Hole
  • Package/Case: 4-SIP, Dual Ports, Same Side
  • Operating Temperature Range: -40°C ~ 85°C
