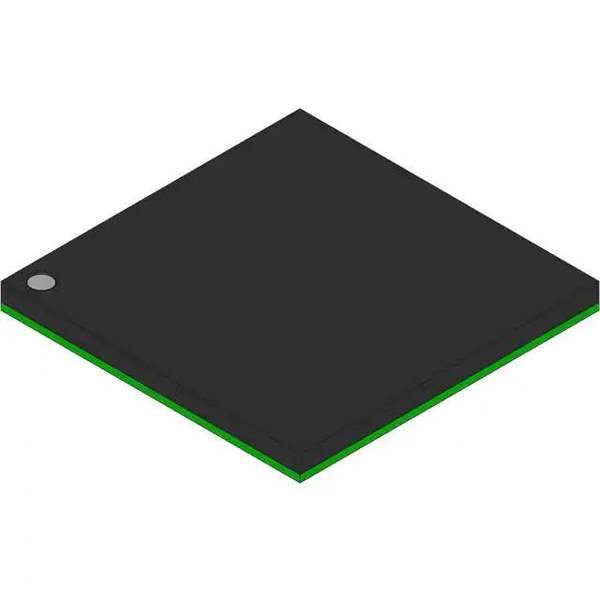

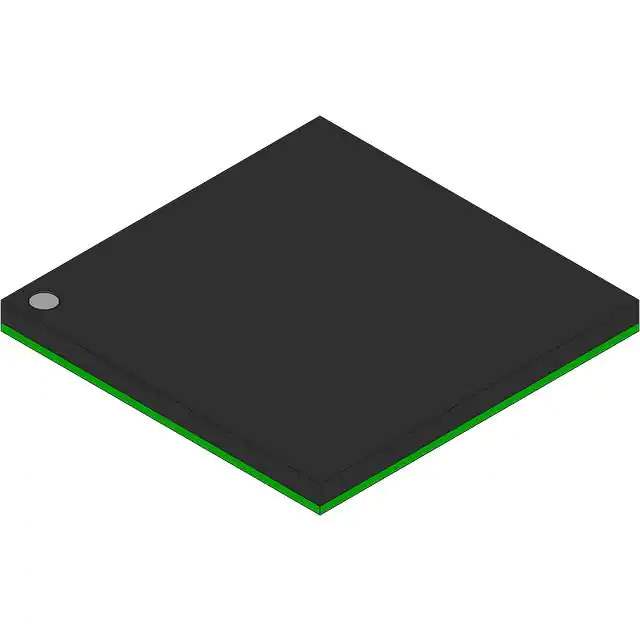

DSP56311VF150 Real Image
Same model may have multiple batches, images only for reference.

DSP56311VF150

Part No DSP56311VF150
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - DSP (Digital Signal Processors)
Description DSP, 24-EXT BIT, 150MHZ PBGA196
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - DSP (Digital Signal Processors)
Mfr Freescale Semiconductor - NXP
Series DSP56K/Symphony
Package Bulk
Product Status Active
Type Fixed Point
Interface Host Interface, SSI, SCI
Clock Rate 150MHz
Non-Volatile Memory ROM (576B)
On-Chip RAM 384kB
Voltage - I/O 3.30V
Voltage - Core 1.80V
Temperature Range - Operating -40°C ~ 100°C (TJ)
Mounting Type Surface Mount
Package / Case 196-LBGA
Supplier Device Package 196-MAPBGA (15x15)
Base Product Number DSP563
Standard Package 6 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 587227-DSP56311VF150
Ultra Librarian 3D Model Ultra Librarian DSP56311VF150 CAD Model

Description

The 587227-DSP56311VF150 is a fixed-point digital signal processor (DSP) from the DSP56K/Symphony series by Freescale Semiconductor - NXP.

  • Clock Rate: 150MHz
  • Voltage Supply: 3.30V for I/O and 1.80V for the core
  • Package: Bulk
  • Standard Package: 6 pieces
  • Communication: Host interface, SSI, and SCI
  • Non-Volatile Memory: ROM (576B)
  • On-Chip RAM: 384kB
  • Mounting Type: Surface mountable
  • Package: 196-LBGA
  • Operating Temperature: -40°C to 100°C
