Same model may have multiple batches, images only for reference.

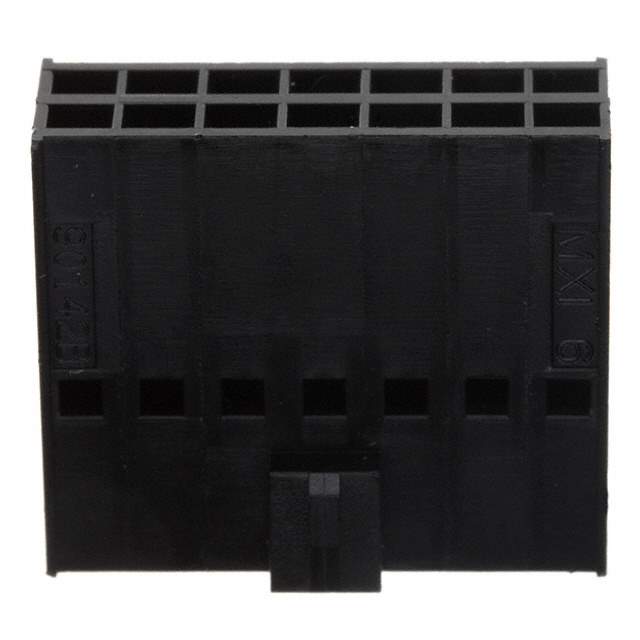

90142-0014 Real Image
Same model may have multiple batches, images only for reference.

90142-0014

Part No 90142-0014
Manufacturer Molex, LLC
Catalog Rectangular - Board to Board Connectors
Description Conn Housing RCP 14 POS 2.54mm Crimp ST Cable Mount Green Carton
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Power, Rectangular
Contact Gender Female
Contact Resistance 20 mΩ
Country of Origin SG
Current Rating 3 A
Depth 15.24 mm
Flammability Rating UL94 V-0
Gender Receptacle
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Color Black
Housing Material PPO
Insulation Resistance 5 GΩ
Lead Free Yes
Lead Pitch 2.54 mm
Length 17.78 mm
Material Polyphenylene
Maximum Operating Temperature 105 °C
Max Voltage Rating (DC) 350.35 kV
Min Operating Temperature -55 °C
Mount Cable
Number of Contacts 14
Number of Pins 14
Number of Positions 14
Number of Rows 2
Orientation Straight
Pitch 2.54 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination Crimp
Voltage Rating 350 V
Voltage Rating (AC) 350 V
Width 7.72 mm
Win Source Part Number 1012859-90142-0014
Categories Rectangular - Board to Board Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 90142-0014 CAD Model

Description

The Molex LLC Power Rectangular Connector is an ideal solution for power supply applications.

  • Positions: 14
  • Pitch: 2.54mm
  • Termination: Crimp
  • Voltage Rating: 350V
  • Contact Resistance: 20 mΩ
  • Insulation Resistance: 5 GΩ
  • Housing Material: PPO
  • Orientation: Straight
  • Color: Black
  • Length: 17.78mm
  • Width: 7.72mm
  • Depth: 15.24mm
  • Halogen-Free: Yes
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Application: Board-to-Board Connections
