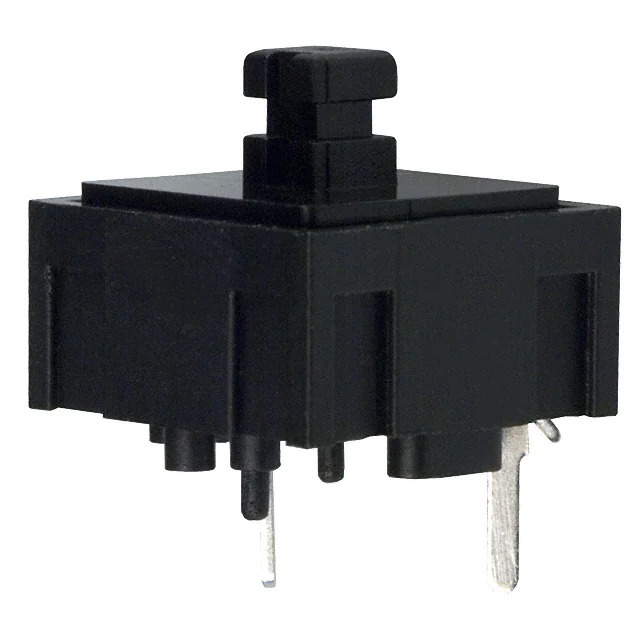

320.02E11BLK E-Switch
Same model may have multiple batches, images only for reference.

320.02E11BLK

Part No 320.02E11BLK
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACT SPST-NO 0.025A 50V
Datasheet
320.02E11BLK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr E-Switch
Series 320
Package Bulk
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.025A @ 50VDC
Actuator Type Plunger for Cap
Mounting Type Through Hole
Actuator Height off PCB, Vertical -
Actuator Length, Right Angle -
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 12.40mm x 12.40mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 135gf
Ingress Protection -
Features Tactile Feedback
Temperature Range - Operating -20°C ~ 70°C
Actuator Material Polycarbonate (PC)
Switch Travel 0.60mm
Mechanical Life 1,000,000 Cycles
Base Product Number 320.02
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376039-320.02E11BLK
Ultra Librarian 3D Model Ultra Librarian 320.02E11BLK CAD Model

Description

The 320.02E11BLK is a tactile switch from E-Switch.

  • Mounting Type: Through Hole
  • Circuit: SPST-NO
  • Feature: Tactile Feedback
  • Mechanical Life: 1,000,000 Cycles
  • Contact Rating @ Voltage: 0.025A @ 50VDC
  • Actuator Height off PCB: 0.60mm
  • Actuator Material: Polycarbonate (PC)
  • Outline: 12.40mm x 12.40mm
  • Illumination: Non-Illuminated
  • Application: Various Electronic Applications
