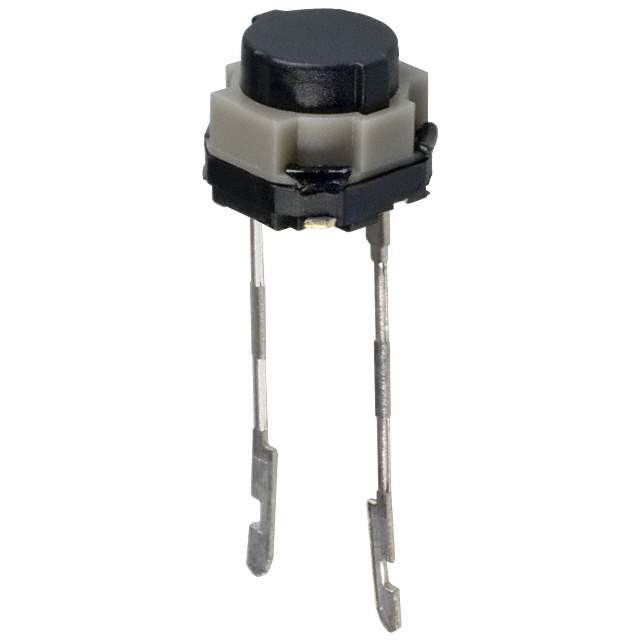

Same model may have multiple batches, images only for reference.

EVQ-PVW05K

Name: EVQ-PVW05K
Brand: Panasonic
SKU: 977457
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	EVQ-PVW05K
Manufacturer	Panasonic
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Top Actuated Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Tactile Switches
Mfr	Panasonic Electronic Components
Series	EVQPV
Package	Cut Tape (CT),Tape & Box (TB)
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Standard
Mounting Type	Through Hole
Actuator Height off PCB, Vertical	5.00mm
Actuator Orientation	Top Actuated
Termination Style	PC Pin
Outline	6.10mm x 6.00mm
Illumination	Non-Illuminated
Operating Force	350gf
Temperature Range - Operating	-30°C ~ 85°C
Switch Travel	1.30mm
Mechanical Life	30,000 Cycles
Base Product Number	EVQ-PV
MSL Level	2A (4 Weeks)
ECCN	EAR99
HTSUS	8536.50.9031
Other Names	EVQPVW05K,P15508TB,P15508CT
Standard Package	2,500
Win Source Part Number	977457-EVQ-PVW05K
Ultra Librarian 3D Model	Ultra Librarian EVQ-PVW05K CAD Model

Alternative Products

Description

The Panasonic Electronic Components electronic component (product) is a tactile switch with SPST-NO circuit and Off-Mom switch function. Bold the product name (e.g., BAV99S,135 → tactile switch) and manufacturer (e.g., Nexperia USA Inc. → Panasonic Electronic Components).

Circuit: SPST-NO
Switch Function: Off-Mom
Actuator Type: Standard
Actuation Orientation: Top Actuated
Switch Travel: 1.30mm
Operating Force: 350gf
Mechanical Life: 30,000 cycles
Mounting Type: Through Hole
Win Source Part Number: 977457-EVQ-PVW05K
