TL6340AF160Q E-Switch
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr E-Switch
Series TL6340
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 12VDC
Actuator Type Rectangular Button
Mounting Type Surface Mount, Right Angle
Actuator Height off PCB, Vertical -
Actuator Length, Right Angle 2.90mm
Actuator Orientation Side Actuated
Termination Style SMD (SMT) Tab
Outline 3.85mm x 1.95mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 160gf
Ingress Protection IP67 - Dust Tight, Waterproof
Features -
Temperature Range - Operating -40°C ~ 85°C
Actuator Material -
Switch Travel 0.20mm
Mechanical Life 200,000 Cycles
Base Product Number TL6340
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376488-TL6340AF160Q
Ultra Librarian 3D Model Ultra Librarian TL6340AF160Q CAD Model

Description

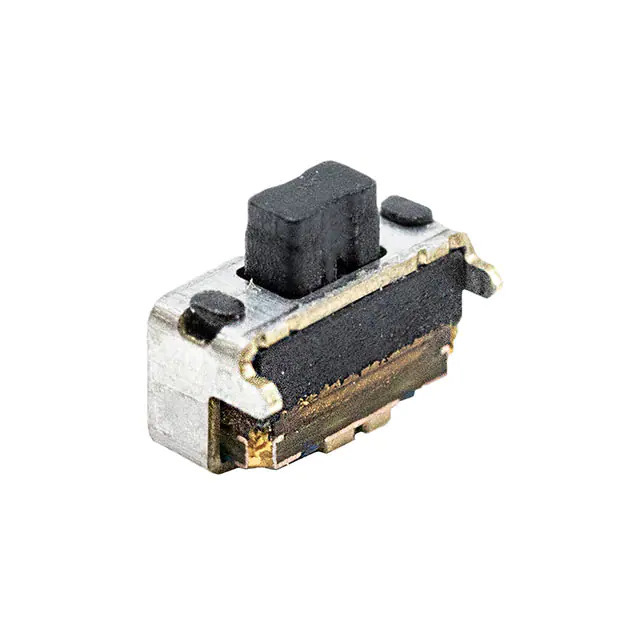

The TL6340AF160Q is a tactile switch designed by E-Switch.

  • Actuator: Rectangular Button
  • Mounting Type: Surface Mount, Right Angle
  • Operating Temperature: -40°C to 85°C
  • Ingress Protection: IP67
  • Mechanical Life: 200,000 cycles
  • Contact Rating: 0.02A @ 12VDC
