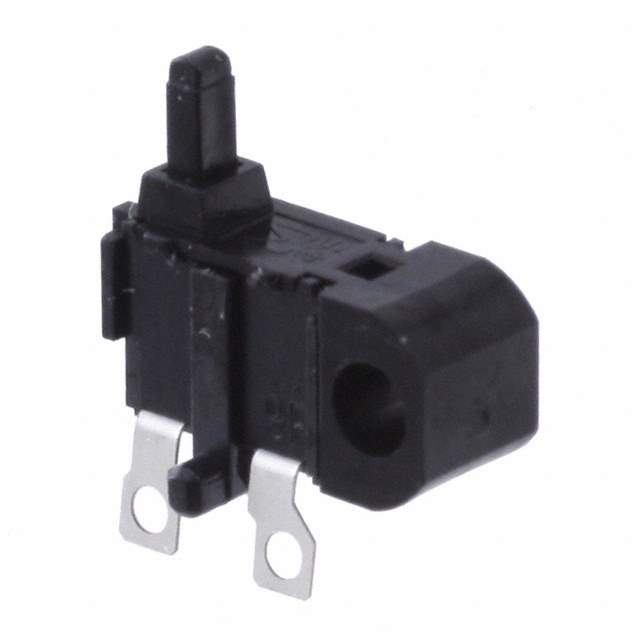

ESE-11HS2 Real Image
Same model may have multiple batches, images only for reference.

ESE-11HS2

Part No ESE-11HS2
Manufacturer Panasonic
Catalog Snap Action, Limit Switches
Description SWITCH DETECTOR SPST-NO 10MA 5V  /  Switch SPST-NO Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Panasonic Electronic Components
Series ESE11
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 10mA (DC)
Voltage Rating - DC 5 V
Actuator Type Overtravel Plunger
Mounting Type Chassis Mount
Termination Style Solder Lug
Operating Force 35gf
Temperature Range - Operating -10°C ~ 70°C
Operating Position 0.313" (7.95mm)
Electrical Life 50,000 Cycles
Mechanical Life 50,000 Cycles
Base Product Number ESE-11
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names P10865S,ESE11HS2,P10865S-NDR
Standard Package 200
Win Source Part Number 973413-ESE-11HS2
Ultra Librarian 3D Model Ultra Librarian ESE-11HS2 CAD Model

Description

The ESE11HS2 is a limit switch manufactured by Panasonic Electronic Components.

  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: overtravel plunger
  • Electrical Life: 50,000 cycles
  • Operating Force: 35gf
  • Mechanical Life: 50,000 cycles
  • Operating Position: 0.313" (7.95mm)
  • Mounting Type: chassis mount
  • Temperature Range: -10°C to 70°C
  • MSL Level: 1 (Unlimited)
  • Current Rating: 10mA (DC)
  • HTSUS: 8536.50.7000
  • Other Names: P10865S, ESE11HS2, P10865S-NDR
  • Base Product Number: ESE-11
