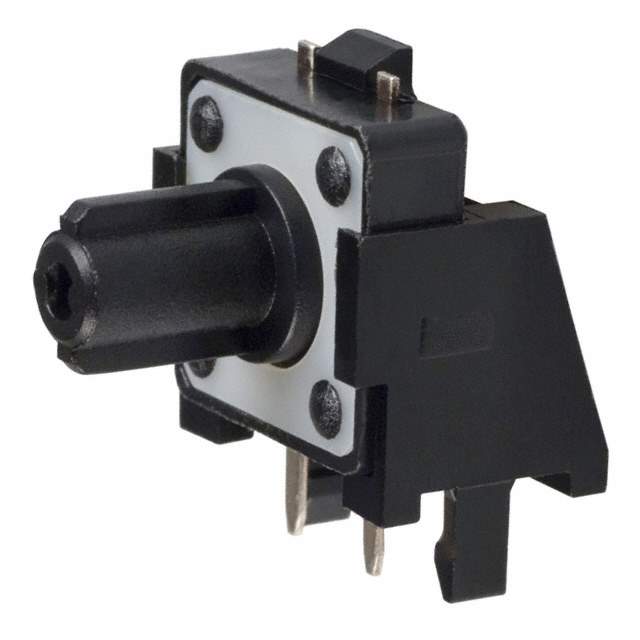

TL1100GF160Q Real Image
Same model may have multiple batches, images only for reference.

TL1100GF160Q

Part No TL1100GF160Q
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
Datasheet
TL1100GF160Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr E-Switch
Series TL1100
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Through Hole, Right Angle
Actuator Length, Right Angle 11.20mm
Actuator Orientation Side Actuated
Termination Style PC Pin
Outline 12.00mm x 9.90mm
Illumination Non-Illuminated
Operating Force 160gf
Features Tactile Feedback
Temperature Range - Operating -20°C ~ 70°C
Actuator Material Polyester
Switch Travel 0.30mm
Mechanical Life 100,000 Cycles
Base Product Number TL1100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names TL1104C,P001103,EG1025,TL 1100 G F160 Q
Standard Package 400
Win Source Part Number 969582-TL1100GF160Q
Ultra Librarian 3D Model Ultra Librarian TL1100GF160Q CAD Model

Description

This tactile switch is part of the TL1100 series with PC Pin termination style.

  • Standard Package: 400
  • Feedback: features tactile feedback
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Material: polyester
  • Outline: 12.00mm x 9.90mm
  • Switch Travel: 0.30mm
  • Contact Rating @ Voltage: 0.05A @ 12VDC
  • Actuator Orientation: side actuated
  • Illumination: non-illuminated
  • Operating Force: 160gf
  • Mechanical Life: 100,000 cycles
  • Mounting: through a hole
  • Actuator Length: 11.20mm right-angle
  • MSL Level: 1 (Unlimited)
  • REACH: unaffected
  • HTSUS code: 8536.50.9031
  • Manufacturer: E-Switch
  • Also known as: TL1104C, P001103, EG1025, TL 1100 G F160 Q
  • Base Product Number: TL1100
