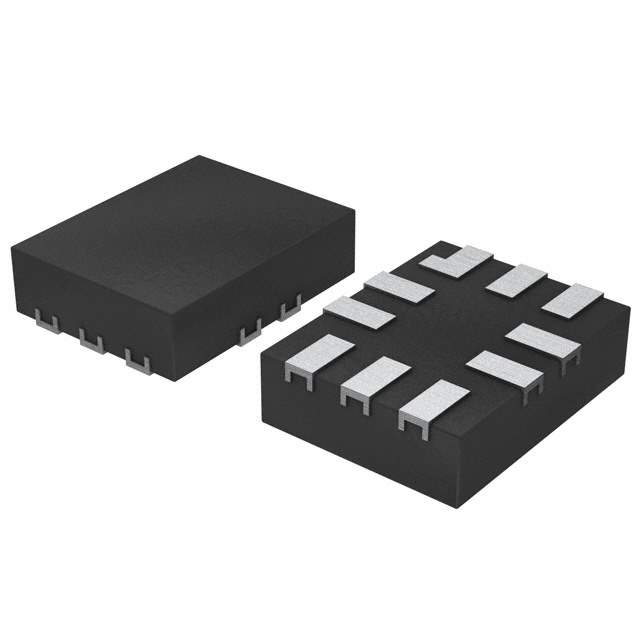

The PI3USB10LP-AZLEX from Diodes Incorporated is a high-performance, low-power USB 2.0 switch that is designed to enable a single USB port to be shared between multiple devices or functions. This versatile component is ideal for applications requiring USB signal multiplexing, such as in mobile phones, tablets, notebooks, and desktop computers.

Key Features

• USB 2.0 Compliance: The PI3USB10LP-AZLEX is fully compliant with the USB 2.0 specification, ensuring reliable operation with data rates up to 480 Mbps.
• Low Power Consumption: Its design focuses on power efficiency, which makes it suitable for battery-powered devices where power conservation is critical.
• High Bandwidth: The switch offers a wide bandwidth to accommodate the high-speed data transfer requirements of USB 2.0 devices.
• ESD Protection: Integrated ESD protection circuits safeguard the device against electrostatic discharge events, enhancing system reliability.
• Compact Packaging: The PI3USB10LP-AZLEX comes in a compact, lead-free package that minimizes PCB space requirements and is suitable for space-constrained applications.

Applications

• Smartphones and Tablets
• Notebooks and Ultrabooks
• Desktop Computers
• Docking Stations
• USB Peripheral Sharing

Technical Specifications

The PI3USB10LP-AZLEX features multiple channels with low on-capacitance and on-resistance, ensuring minimal signal distortion and attenuation. It operates over a wide temperature range, making it suitable for various environments. Additionally, the device supports hot insertion, which allows users to connect and disconnect peripherals without the need to power down the system.

Quality and Reliability

As with all Diodes Incorporated products, the PI3USB10LP-AZLEX is manufactured to high-quality standards. It undergoes rigorous testing to ensure it meets the reliability requirements for commercial and industrial applications. The product is RoHS compliant, reflecting Diodes Incorporated's commitment to environmental responsibility.
