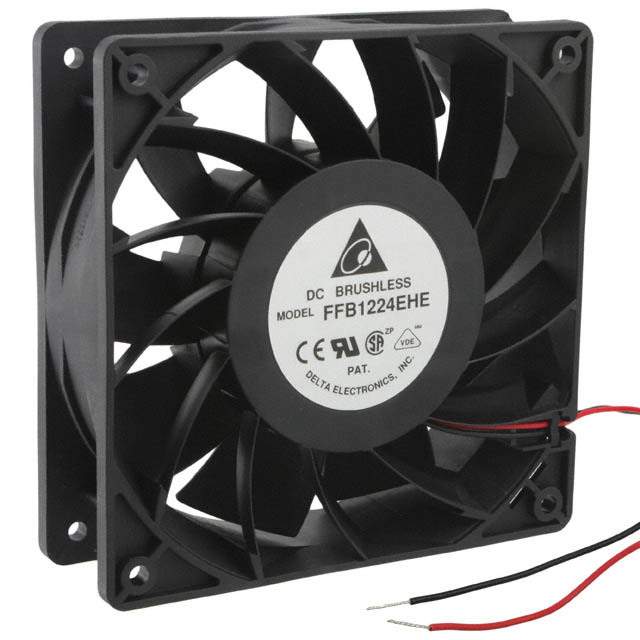

FFB1224EHE Real Image
Same model may have multiple batches, images only for reference.

FFB1224EHE

Part No FFB1224EHE
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 120X38MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 190.0 CFM (5.32m³/min) 2 Wire Leads
Datasheet
FFB1224EHE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series FFB
Package Box
Voltage - Rated 24VDC
Size / Dimension Square - 120mm L x 120mm H
Width 38.00mm
Air Flow 190.0 CFM (5.32m³/min)
Static Pressure 0.700 in H2O (174.4 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 59.0dB(A)
Power (Watts) 24 W
RPM 4000 RPM
Termination 2 Wire Leads
Temperature Range - Operating 14 ~ 122°F (-10 ~ 50°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.816 lb (370.13 g)
Current Rating (Amps) 1.00A
Voltage Range 14 ~ 26.4VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number FFB1224
Standard Package 36
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1348589-FFB1224EHE
Ultra Librarian 3D Model Ultra Librarian FFB1224EHE CAD Model

Description

The FFB1224EHE is a DC brushless fan from Delta Electronics, featuring a locked rotor protection mechanism.

  • Voltage Range: 14 to 26.4VDC
  • Rated Voltage: 24VDC
  • Power: 24W
  • Lifetime: up to 70000 hours @ 40°C
  • Fan Type: tubeaxial
  • Bearing Type: ball
  • Noise Level: 59.0dB(A)
  • Maximum RPM: 4000
  • Size: 120mm L x 120mm H
  • Width: 38.00mm
  • Weight: 0.816 lb (370.13 g)
  • Air Flow: 190.0 CFM (5.32m³/min)
  • Static Pressure: 0.700 in H2O (174.4 Pa)
  • Frame and Blade Material: plastic
  • Operating Temperature: 14 ~ 122°F (-10 ~ 50°C)
  • ECCN: EAR99
  • Approvals: CE, CSA, UL, and VDE
