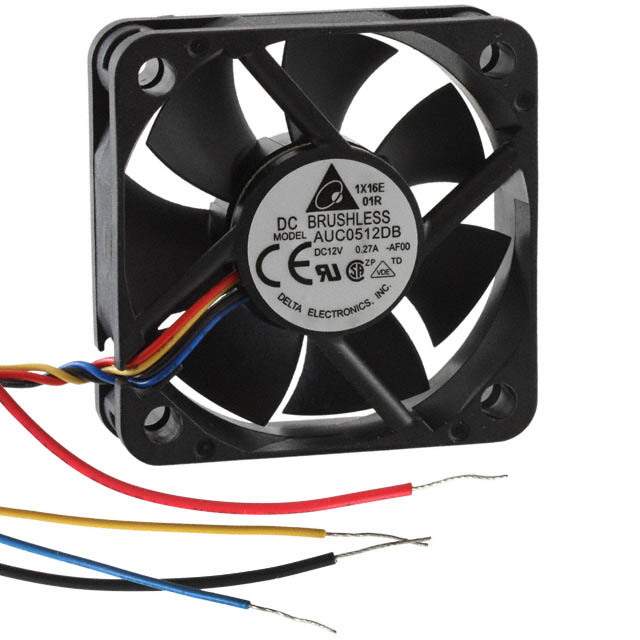

AUC0512DB-AF00 Real Image
Same model may have multiple batches, images only for reference.

AUC0512DB-AF00

Part No AUC0512DB-AF00
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 50X15MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 50mm L x 50mm H Superflo 20.2 CFM (0.566m³/min) 4 Wire Leads
Datasheet
AUC0512DB-AF00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Package Bulk
Voltage - Rated 12VDC
Size / Dimension Square - 50mm L x 50mm H
Width 15.00mm
Air Flow 20.2 CFM (0.566m³/min)
Static Pressure 0.299 in H2O (74.5 Pa)
Bearing Type Superflo
Fan Type Tubeaxial
Features Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Noise 38.5dB(A)
Power (Watts) 2.16 W
RPM 7400 RPM
Termination 4 Wire Leads
Temperature Range - Operating 14 ~ 140°F (-10 ~ 60°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.045 lb (20.41 g)
Current Rating (Amps) 0.27A
Voltage Range 10.8 ~ 13.2VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 30000 Hrs @ 40°C
Base Product Number AUC0512
Standard Package 336
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1349904-AUC0512DB-AF00
Ultra Librarian 3D Model Ultra Librarian AUC0512DB-AF00 CAD Model

Description

Delta Electronics' AUC0512DB-AF00 is a DC brushless fan that features locked rotor protection, PWM control, and speed sensor (Tach).

  • Manufacturer: Delta Electronics
  • Fan Type: DC Brushless
  • Features: Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
  • Voltage Rating: 12VDC
  • Power: 2.16W
  • Lifetime: 30,000 Hours @ 40°C
  • Air Flow: 20.2 CFM (0.566m³/min)
  • Static Pressure: 0.299 in H2O (74.5 Pa)
  • Noise: 38.5dB(A)
  • Speed: 7400 RPM
  • Size / Dimension: Square - 50mm L x 50mm H
  • Lead Wires: 4
  • Ingress Protection: -
  • Operating Temperature: 14 ~ 140°F (-10 ~ 60°C)
  • ECCN: EAR99
  • REACH: Unaffected
