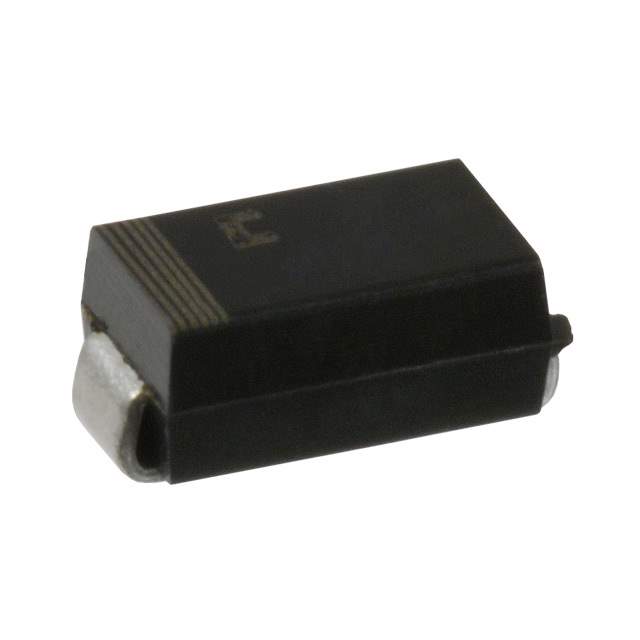

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 380mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 1mA @ 20V
Mounting SMD (SMT)
Case / Package DO-214AC (SMA)
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 1028581-CDBA120L-G
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian CDBA120L-G CAD Model

Description

The Comchip Technology CDBA120L-G is a Schottky diode used in discrete semiconductor products.

  • Maximum Reverse Voltage: 20 V
  • Forward Voltage: 380 mV @ 1 A
  • Current: 1 A
  • Reverse Leakage: 1 mA @ 20 V
  • Maximum Junction Temperature: 125°C
