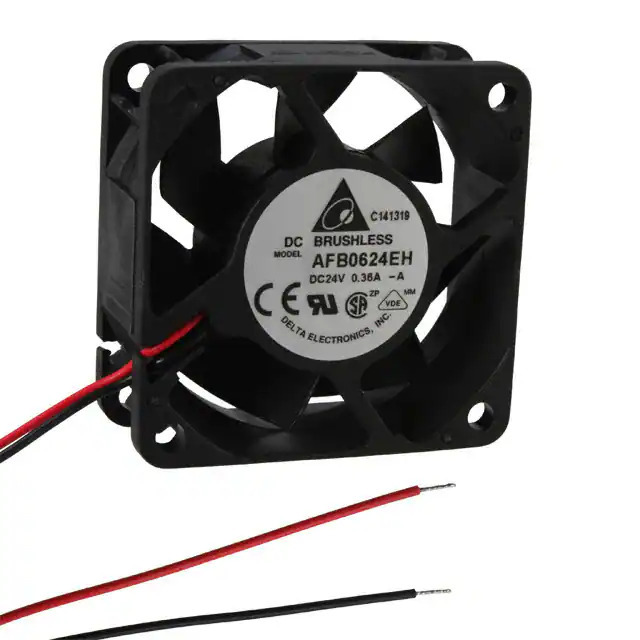

AFB0624EH-A Delta Electronics
Same model may have multiple batches, images only for reference.

AFB0624EH-A

Part No AFB0624EH-A
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 60X25.4MM 24VDC WIRE
Datasheet
AFB0624EH-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Bulk
Product Status Active
Voltage - Rated 24VDC
Size / Dimension Square - 60mm L x 60mm H
Width 25.40mm
Air Flow 38.4 CFM (1.08m³/min)
Static Pressure 0.544 in H2O (135.5 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 46.5dB(A)
Power (Watts) 5.76 W
RPM 6800 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.176 lb (80.00 g)
Current Rating (Amps) 0.240A
Voltage Range 14 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0624
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368385-AFB0624EH-A
Ultra Librarian 3D Model Ultra Librarian AFB0624EH-A CAD Model

Description

The 1368385-AFB0624EH-A is a 24VDC brushless fan from Delta Electronics.

  • Series: AFB
  • Size: 60mm L x 60mm H
  • Features: Locked Rotor Protection
  • Current Rating: 0.240A
  • Power (Watts): 5.76W
  • Lifespan @ Temp.: 70000 Hrs @ 40°C
  • Operating Temperature: 14°F ~ 158°F (-10°C ~ 70°C)
  • Air Flow: 38.4 CFM (1.08m³/min)
  • Static Pressure: 0.544 in H2O (135.5 Pa)
  • Noise: 46.5dB(A)
  • Speed (RPM): 6800 RPM
  • Material - Frame: Plastic
  • Material - Blade: Plastic
