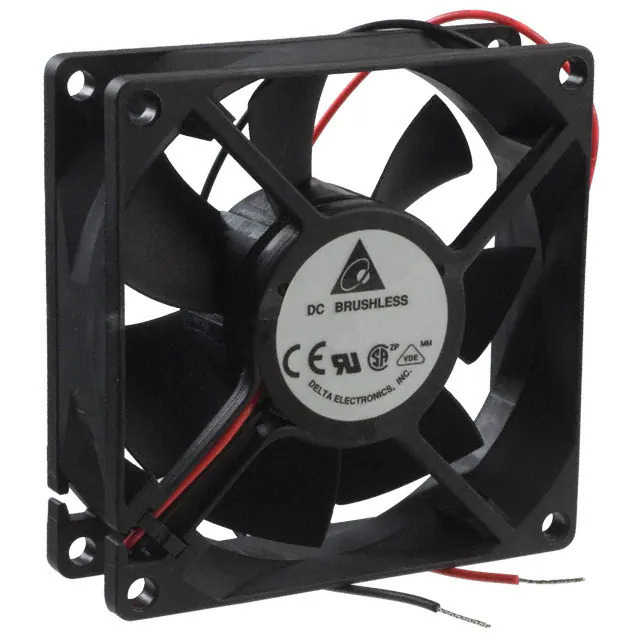

AFB0824SH Delta Electronics
Same model may have multiple batches, images only for reference.

AFB0824SH

Part No AFB0824SH
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 80X25.4MM 24VDC WIRE
Datasheet
AFB0824SH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Tray
Product Status Active
Voltage - Rated 24VDC
Size / Dimension Square - 80mm L x 80mm H
Width 25.40mm
Air Flow 46.6 CFM (1.30m³/min)
Static Pressure 0.267 in H2O (66.5 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 40.0dB(A)
Power (Watts) 3.84 W
RPM 4000 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 140°F (-10 ~ 60°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.176 lb (80.00 g)
Current Rating (Amps) 0.160A
Voltage Range 14 ~ 26VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0824
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368401-AFB0824SH
Ultra Librarian 3D Model Ultra Librarian AFB0824SH CAD Model

Description

The AFB0824SH is a DC brushless fan from Delta Electronics.

  • Series: AFB
  • Size: 80mm x 80mm
  • Rated Voltage: 24VDC
  • Current: 0.160A
  • Power: 3.84W
  • Bearing Type: Ball
  • Rated Lifetime: 70,000 hours @ 40°C
  • Protection: Locked Rotor Protection
  • Air Flow: 46.6 CFM (1.30m³/min)
  • Static Pressure: 0.267 in H2O (66.5 Pa)
  • Noise Level: 40.0dB(A)
  • Maximum Speed: 4000 RPM
  • Approvals: CE, CSA, UL, and VDE
  • Suitable for: Thermal management applications
  • Used in: Fans, particularly in the field of DC brushless fans
