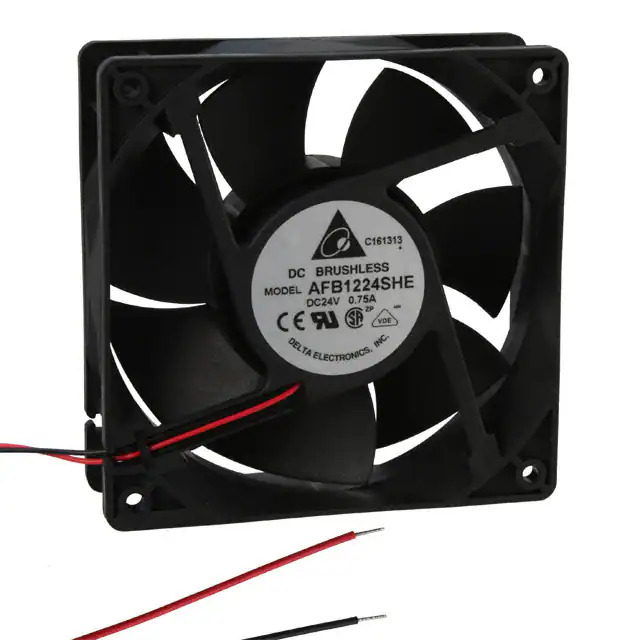

AFB1224SHE Delta Electronics
Same model may have multiple batches, images only for reference.

AFB1224SHE

Part No AFB1224SHE
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 120X38MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 151.9 CFM (4.25m³/min) 2 Wire Leads
Datasheet
AFB1224SHE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Bulk
Product Status Active
Voltage - Rated 24VDC
Size / Dimension Square - 120mm L x 120mm H
Width 38.00mm
Air Flow 151.9 CFM (4.25m³/min)
Static Pressure 0.571 in H2O (142.2 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 53.0dB(A)
Power (Watts) 12 W
RPM 3700 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 140°F (-10 ~ 60°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.565 lb (256.28 g)
Current Rating (Amps) 0.500A
Voltage Range 7 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB1224
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1356241-AFB1224SHE
Ultra Librarian 3D Model Ultra Librarian AFB1224SHE CAD Model

Description

The Delta Electronics AFB1224SHE is a high-performance DC brushless fan from the AFB series.

  • Voltage: 24VDC
  • Current Rating: 0.500A
  • Size: 120mm x 120mm
  • Air Flow: 151.9 CFM
  • Noise Level: 53.0dB(A)
  • Static Pressure: 0.571 in H2O
  • Features: Locked Rotor Protection
  • Approvals: CE, CSA, UL, VDE
  • Lifetime: 70000 Hours @ 40 degrees Celsius
