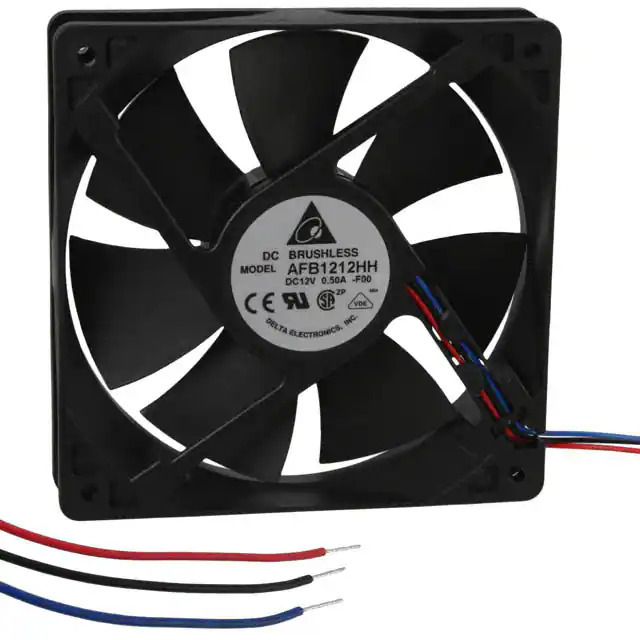

AFB1212HH-F00 Delta Electronics
Same model may have multiple batches, images only for reference.

AFB1212HH-F00

Part No AFB1212HH-F00
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 120X25.4MM 12VDC WIRE
Datasheet
AFB1212HH-F00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Bulk
Product Status Active
Voltage - Rated 12VDC
Size / Dimension Square - 120mm L x 120mm H
Width 25.40mm
Air Flow 95.1 CFM (2.66m³/min)
Static Pressure 0.304 in H2O (75.7 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, Speed Sensor (Tach)
Noise 41.5dB(A)
Power (Watts) 3.96 W
RPM 2800 RPM
Termination 3 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 140°F (-10 ~ 60°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.437 lb (198.00 g)
Current Rating (Amps) 0.330A
Voltage Range 7 ~ 13.8VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB1212
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368421-AFB1212HH-F00
Ultra Librarian 3D Model Ultra Librarian AFB1212HH-F00 CAD Model

Description

The Delta Electronics AFB1212HH-F00 is a high-performance DC brushless fan from the AFB series.

  • Voltage: 12VDC
  • Current Rating: 0.330A
  • Size: 120mm x 120mm
  • Air Flow: 95.1 CFM
  • Noise Level: 41.5dB(A)
  • Static Pressure: 0.304 in H2O
  • Protection: Locked Rotor Protection
  • Speed Sensor (tach): Yes
  • Approvals: CE, CSA, UL, and VDE
  • Lifetime: 70000 hours @ 40 degrees Celsius
