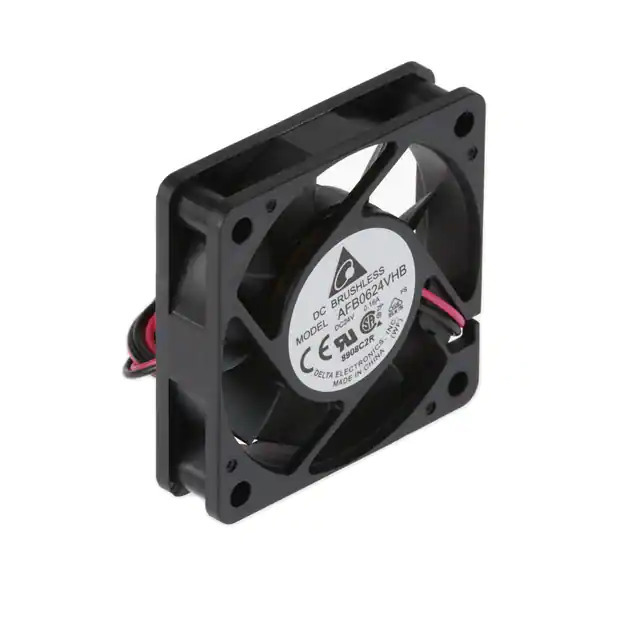

AFB0624VHB Delta Electronics
Same model may have multiple batches, images only for reference.

AFB0624VHB

Part No AFB0624VHB
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 60X15MM 24VDC WIRE
Datasheet
AFB0624VHB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Box
Product Status Not For New Designs
Voltage - Rated 24VDC
Size / Dimension Square - 60mm L x 60mm H
Width 15.00mm
Air Flow 19.4 CFM (0.543m³/min)
Static Pressure 0.240 in H2O (59.8 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 37.0dB(A)
Power (Watts) 2.64 W
RPM 5000 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.098 lb (44.45 g)
Current Rating (Amps) 0.110A
Voltage Range 14 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0624
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368414-AFB0624VHB
Ultra Librarian 3D Model Ultra Librarian AFB0624VHB CAD Model

Description

The Delta Electronics AFB0624VHB is a DC brushless fan designed for thermal management in electronic systems.

  • Voltage Rating: 24VDC
  • Temperature Range: -10 to 70 degrees Celsius
  • Size: 60mm x 60mm
  • Weight: 44.45g
  • Air Flow: 19.4 CFM
  • Static Pressure: 0.240 in H2O
  • Features: locked rotor protection
  • Approvals: CE, CSA, UL, and VDE
  • Lifetime: 70000 hours @ 40 degrees Celsius
