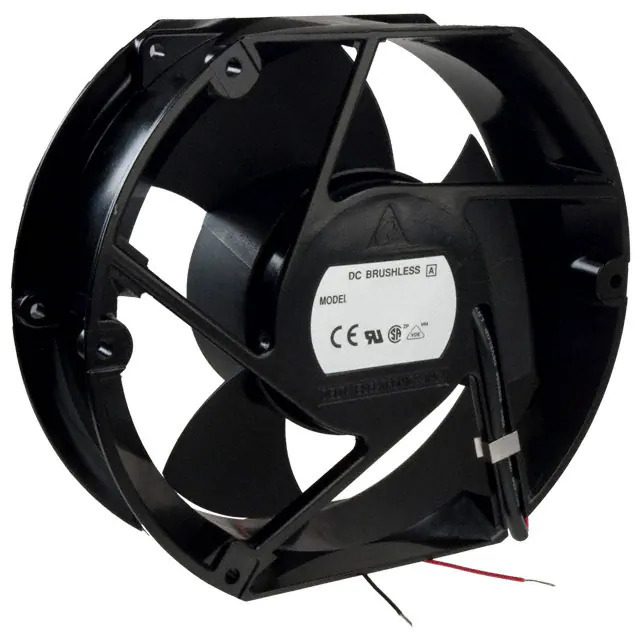

EFB1524VHG Delta Electronics
Same model may have multiple batches, images only for reference.

EFB1524VHG

Part No EFB1524VHG
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 172X50.8MM 24VDC WIRE
Datasheet
EFB1524VHG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series EFB
Package Tray
Product Status Active
Voltage - Rated 24VDC
Size / Dimension Rectangular/Rounded - 172mm L x 150mm H
Width 50.80mm
Air Flow 302.3 CFM (8.46m³/min)
Static Pressure 0.937 in H2O (233.4 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 60.0dB(A)
Power (Watts) 23.28 W
RPM 4000 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 1.9 lbs (861.8 g)
Current Rating (Amps) 0.970A
Voltage Range 12 ~ 28VDC
Material - Frame Aluminum
Material - Blade Plastic
Lifetime @ Temp. 80000 Hrs @ 40°C
Base Product Number EFB1524
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368430-EFB1524VHG
Ultra Librarian 3D Model Ultra Librarian EFB1524VHG CAD Model

Description

The 1368430-EFB1524VHG is a DC brushless fan manufactured by Delta Electronics.

  • Series: EFB
  • Rated Voltage: 24VDC
  • Size: 172mm L x 150mm H
  • Lifetime: 80000 hours @ 40°C
  • Current Rating: 0.970A
  • Power Consumption: 23.28W
  • Protection: Locked Rotor Protection
