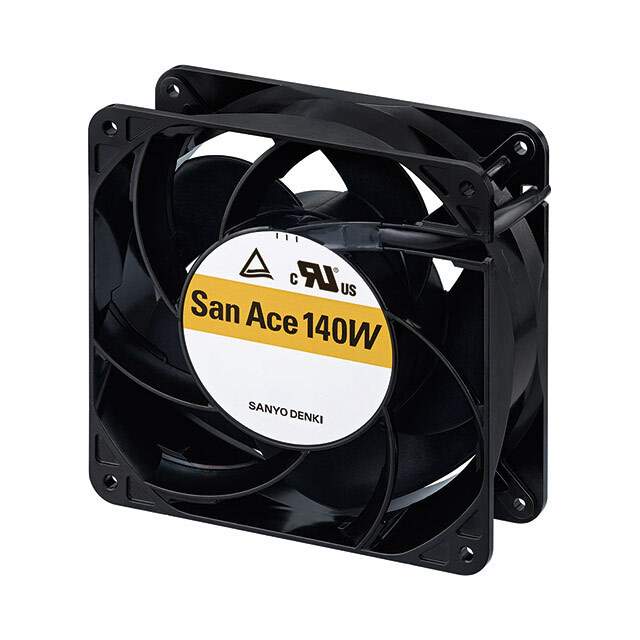

9WL1412P1A001

Part No 9WL1412P1A001
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 140X38MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 140mm L x 140mm H Ball 282.0 CFM (7.90m³/min) 4 Wire Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 140W
Package Bulk
Voltage - Rated 12VDC
Size / Dimension Square - 140mm L x 140mm H
Width 38.00mm
Air Flow 282.0 CFM (7.90m³/min)
Static Pressure 2.070 in H2O (515.6 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Noise 68.0dB(A)
Power (Watts) 44.64 W
RPM 6900 RPM
Termination 4 Wire Leads
Ingress Protection IP68 - Dust Tight, Waterproof
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency cURus, TUV
Weight 1.653 lb (750.0 g)
Current Rating (Amps) 3.72A
Voltage Range 10.2 ~ 13.8VDC
Material - Frame Aluminum
Material - Blade Plastic
Lifetime @ Temp. 100000 Hrs @ 60°C
Base Product Number 9WL1412
Standard Package 14
MSL Level Not Applicable
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1339360-9WL1412P1A001
Ultra Librarian 3D Model Ultra Librarian 9WL1412P1A001 CAD Model

Description

The Sanyo Denki America Inc. San Ace 140W is a DC brushless fan component that features locked rotor protection, PWM control, speed sensor (Tach), and 4 wire leads.

  • Shape: Square
  • Dimension: 140mm L x 140mm H
  • Voltage Rating: 12VDC
  • Power Rating: 44.64W
  • Lifetime: 100,000 hrs @ 60°C
  • Weight: 1.653 lb (750.0 g)
