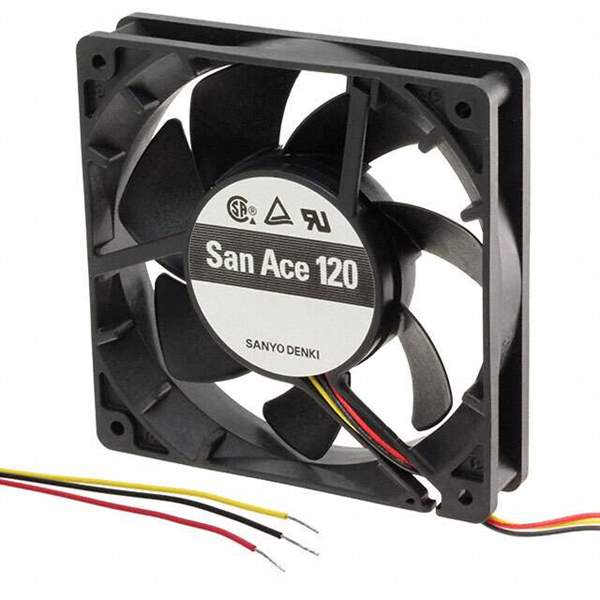

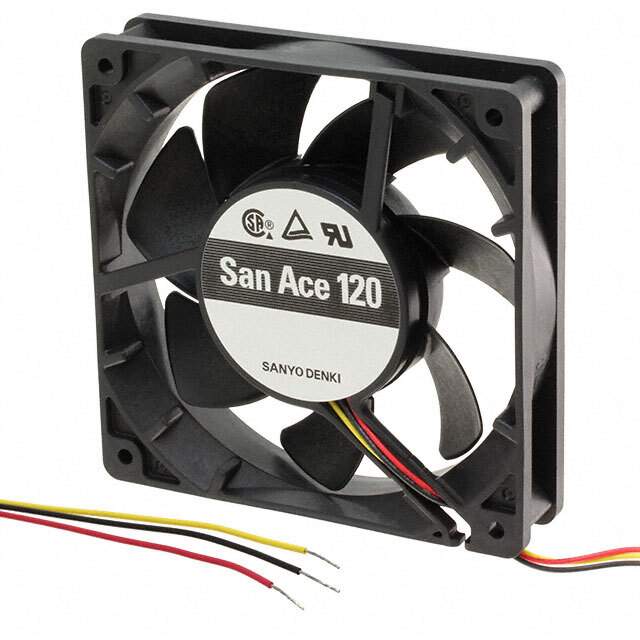

9GV1224H1D01 Real Image
Same model may have multiple batches, images only for reference.

9GV1224H1D01

Part No 9GV1224H1D01
Manufacturer Sanyo Denki America Inc.
Catalog Fans, Thermal Management
Description FAN AXIAL 120X38MM 24VDC WIRE / Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 182.3 CFM (5.10m³/min) 3 Wire Leads
Datasheet
9GV1224H1D01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Sanyo Denki America Inc.
Series San Ace 120
Package Box
Voltage - Rated 24VDC
Size / Dimension Square - 120mm L x 120mm H
Width 38.00mm
Air Flow 182.3 CFM (5.10m³/min)
Static Pressure 0.950 in H2O (237.0 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Sensor
Noise 58.0dB(A)
Power (Watts) 19.2 W
RPM 5200 RPM
Termination 3 Wire Leads
Temperature Range - Operating -4 ~ 158°F (-20 ~ 70°C)
Approval Agency CSA, TUV, UL
Weight 0.794 lb (360.15 g)
Current Rating (Amps) 0.800A
Voltage Range 20.4 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 40000 Hrs @ 60°C
Base Product Number 9GV1224
Standard Package 21
MSL Level Not Applicable
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1341484-9GV1224H1D01
Ultra Librarian 3D Model Ultra Librarian 9GV1224H1D01 CAD Model

Description

The San Ace 120 is a high-performance DC brushless fan designed for use in thermal management applications.

  • Voltage Rating: 24VDC
  • Power Rating: 19.2W
  • Maximum Air Flow: 182.3 CFM
  • Static Pressure: 0.950 in H2O
  • Features: Locked rotor sensor
  • Bearing Type: Ball
  • Fan Type: Tubeaxial
  • Frame Material: Plastic
  • Blade Material: Plastic
  • Temperature Range: -4 ~ 158°F (-20 ~ 70°C)
  • Lifetime: 40000 hours @ 60°C
  • Package: Box
  • Weight: 0.794 lb (360.15 g)
