Same model may have multiple batches, images only for reference.

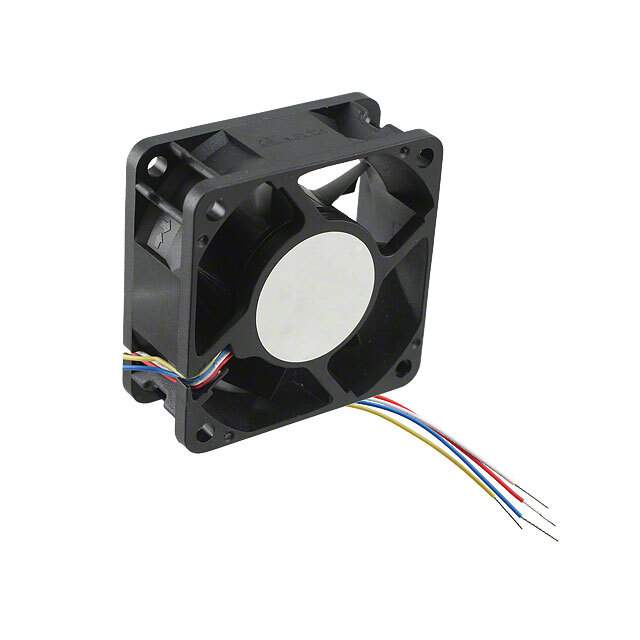

AFB0648EH-TP27 Real Image
Same model may have multiple batches, images only for reference.

AFB0648EH-TP27

Part No AFB0648EH-TP27
Manufacturer Delta Electronics
Catalog DC Fans
Description FAN AXIAL 60X25.4MM 48VDC WIRE / Fan Tubeaxial 48VDC Square - 60mm L x 60mm H Ball 38.4 CFM (1.08m³/min) 4 Wire Leads
Datasheet
AFB0648EH-TP27 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Box
Voltage - Rated 48VDC
Dimension Square - 60mm L x 60mm H
Width 25.40mm
Air Flow 38.4 CFM (1.08m³/min)
Static Pressure 0.544 in H2O (135.5 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Noise 46.5dB(A)
Power (Watts) 6.72 W
RPM 6800 RPM
Termination 4 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.176 lb (80.00 g)
Current Rating (Amps) 0.140A
Voltage Range 36 ~ 60VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0648
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Other Names 603-1197,AFB0648EHTP27
Standard Package 180
Win Source Part Number 1063637-AFB0648EH-TP27
Ultra Librarian 3D Model Ultra Librarian AFB0648EH-TP27 CAD Model

Description

The AFB0648EH-TP27 is a DC brushless fan manufactured by Delta Electronics.

  • Locked Rotor Protection: Yes
  • PWM Control: Yes
  • Speed Sensor (Tach): Yes
  • Termination: 4 wire leads
  • Package: box
  • Voltage Range: 36 ~ 60VDC
  • Rated Voltage: 48VDC
  • CFM: 38.4
  • Static Pressure: 0.544 in H2O
  • Noise Level: 46.5dB(A)
  • Lifetime: 70000 Hrs @ 40°C
