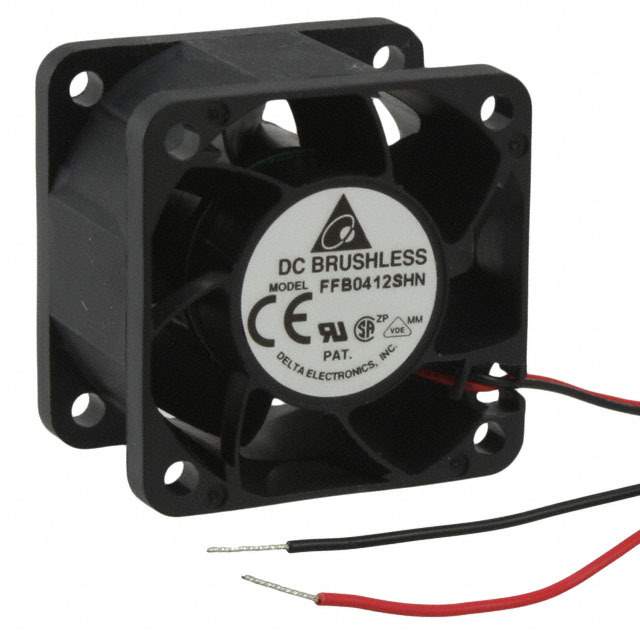

FFB0412SHN Real Image
Same model may have multiple batches, images only for reference.

FFB0412SHN

Part No FFB0412SHN
Manufacturer Delta Electronics
Catalog DC Fans
Description FAN AXIAL 40X28MM 12VDC WIRE / Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 24.0 CFM (0.672m³/min) 2 Wire Leads
Datasheet
FFB0412SHN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series FFB
Package Bulk
Voltage - Rated 12VDC
Dimension Square - 40mm L x 40mm H
Width 28.00mm
Air Flow 24.0 CFM (0.672m³/min)
Static Pressure 1.075 in H2O (267.8 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 54.5dB(A)
Power (Watts) 6 W
RPM 13000 RPM
Termination 2 Wire Leads
Temperature Range - Operating 14 ~ 140°F (-10 ~ 60°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.071 lb (32.21 g)
Current Rating (Amps) 0.500A
Voltage Range 4 ~ 13.8VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 50000 Hrs @ 40°C
Base Product Number FFB0412
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Other Names 603-1414
Standard Package 288
Win Source Part Number 1031068-FFB0412SHN
Ultra Librarian 3D Model Ultra Librarian FFB0412SHN CAD Model

Description

The Delta Electronics FFB0412SHN is a DC Brushless Fan that is designed for thermal management.

  • Win Source Part Number: 1031068
  • Features: Locked Rotor Protection
  • Termination: 2 Wire Leads
  • Package: Bulk
  • Standard Package: 288 units
  • Voltage Rated: 12VDC
  • Power Output: 6W
  • Lifetime @ Temperature: 50000 Hrs @ 40°C
  • Voltage Range: 4 ~ 13.8VDC
  • Width: 28.00mm
  • Air Flow: 24.0 CFM (0.672m³/min)
  • Static Pressure: 1.075 in H2O (267.8 Pa)
  • Bearing Type: Ball
  • Fan Type: Tubeaxial
  • Noise: 54.5dB(A)
  • RPM: 13000 RPM
  • Material (Frame and Blade): Plastic
  • Operating Temperature Range: 14 ~ 140°F (-10 ~ 60°C)
  • Dimension: Square - 40mm L x 40mm H
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
  • HTSUS: 8414.59.6590
  • Other Names: 603-1414
  • Base Product Number: FFB0412
  • Approvals: CE, CSA, UL, and VDE
