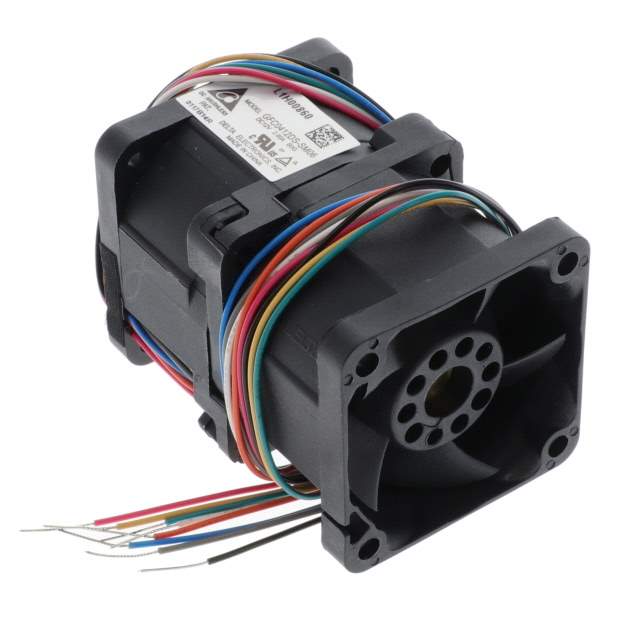

GFC0412DS-SM06B0G Real Image
Same model may have multiple batches, images only for reference.

GFC0412DS-SM06B0G

Part No GFC0412DS-SM06B0G
Manufacturer Delta Electronics
Catalog DC Fans
Description 40X40X56MM 12V DC FAN W/SPEED CO / Fan Tubeaxial (Dual) 12VDC Square - 40mm L x 40mm H Ball 37.6 CFM (1.05m³/min) 4 Wire Leads per Fan
Datasheet
GFC0412DS-SM06B0G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series GFC
Package Box
Voltage - Rated 12VDC
Dimension Square - 40mm L x 40mm H
Width 56.00mm
Air Flow 37.6 CFM (1.05m³/min)
Static Pressure 4.110 in H2O (1023.8 Pa)
Bearing Type Ball
Fan Type Tubeaxial (Dual)
Features Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Noise 69.0dB(A)
Power (Watts) 27.24 W
RPM 23000 Front, 20500 Rear
Termination 4 Wire Leads per Fan
Temperature Range - Operating 14 ~ 140°F (-10 ~ 60°C)
Approval Agency cURus, TUV
Weight 0.183 lb (83.01 g)
Current Rating (Amps) 2.27A
Voltage Range 10.8 ~ 12.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number GFC0412
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Other Names 603-GFC0412DS-SM06B0G
Standard Package 80
Win Source Part Number 1056387-GFC0412DS-SM06B0G
Ultra Librarian 3D Model Ultra Librarian GFC0412DS-SM06B0G CAD Model

Description

The GFC series DC brushless fan is a high-quality fan designed for use in various electronic applications from Delta Electronics.

  • Voltage Rating: 12VDC.
  • Power Output: 27.24W.
  • Air Flow: 37.6 CFM.
  • Temperature Range: 14°F to 140°F (-10°C to 60°C).
  • Noise Level: 69.0dB(A).
  • Package: Box package.
  • Standard Package: 80.
  • Features: Locked rotor protection, PWM control, and speed sensor (Tach).
  • Application: Ideal for use in thermal management applications.
  • Dimension: Square - 40mm L x 40mm H.
