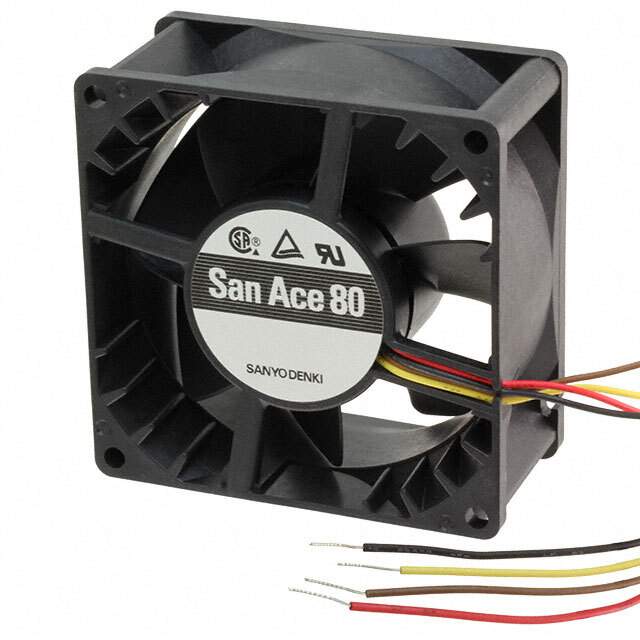

9GA0824P4J001 Real Image
Same model may have multiple batches, images only for reference.

9GA0824P4J001

Part No 9GA0824P4J001
Manufacturer Sanyo Denki America Inc.
Catalog DC Fans
Description FAN AXIAL 80X25MM 24VDC WIRE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 300000875-9GA0824P4J001
Manufacturer Sanyo Denki America Inc
Category Fans, Thermal Management -Fans -DC Brushless Fans (BLDC)
Series San Ace 80
Package Box
Product Status Active
Voltage - Rated 24VDC
Size / Dimension Square - 80mm L x 80mm H
Width 25.00mm
Static Pressure 0.700 in H2O (174.4 Pa)
Bearing Type Ball
Ultra Librarian 3D Model Ultra Librarian 9GA0824P4J001 CAD Model

Description

The San Ace 80 DC brushless fan from Sanyo Denki America Inc is a high-quality fan designed for thermal management.

  • Voltage Rating: 24VDC
  • Size: 80mm L x 80mm H
  • Fan Shape: Square
  • Air Flow: 73.0 CFM (2.04m³/min)
  • Static Pressure: 0.700 in H2O (174.4 Pa)
  • Bearing Type: Ball
  • Product Status: Active
