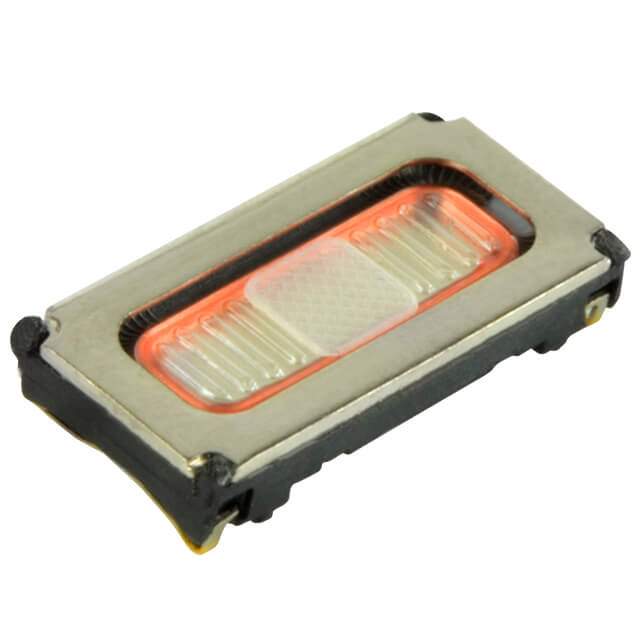

CMR-12062S-67 Real Image
Same model may have multiple batches, images only for reference.

CMR-12062S-67

Part No CMR-12062S-67
Manufacturer CUI Inc.
Catalog Speakers
Description SPEAKR 32OHM 20MW TOP PORT 117DB / 32 Ohms Receiver Speaker 20 mW 300 Hz ~ 7 kHz Top Rectangular
Datasheet
CMR-12062S-67 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products>Speakers
Mfr CUI Devices
Series CMR
Package Tray
Technology Magnetic
Type Receiver
Frequency Range 300 Hz ~ 7 kHz
Frequency - Self Resonant 450Hz
Impedance 32 Ohms
Efficiency - dBA 117.00
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 20 mW
Power - Max 30 mW
Port Location Top
Shape Rectangular
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd-Fe-B
Ingress Protection IP67 - Dust Tight, Waterproof
Termination Spring Type
Dimension 0.472" L x 0.236" W (12.00mm x 6.00mm)
Height - Seated (Max) 0.079" (2.00mm)
Base Product Number CMR-12062
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8518.29.8000
Other Names 2266-CMR-12062S-67,102-5012
Standard Package 200
Win Source Part Number 993562-CMR-12062S-67
Ultra Librarian 3D Model Ultra Librarian CMR-12062S-67 CAD Model

Description

The CMR-12062S-67 by CUI Devices is a high-quality speaker that is perfect for your audio needs.

  • Manufacturer: CUI Devices
  • Model: CMR-12062S-67
  • Shape: Rectangular
  • Termination: Spring Type
  • Ingress Protection: IP67 (Dust tight and Waterproof)
  • Frequency Range: 300 Hz to 7 kHz
  • Impedance: 32 Ohms
  • Cone Material: Polyester and Polyethylene Terephthalate (PET)
  • Magnet Material: Nd-Fe-B
  • Maximum Power: 30 mW
  • Rated Power: 20 mW
  • Efficiency: 117.00 dBA
  • Sound Pressure Level (SPL) Efficiency Type: Yes
