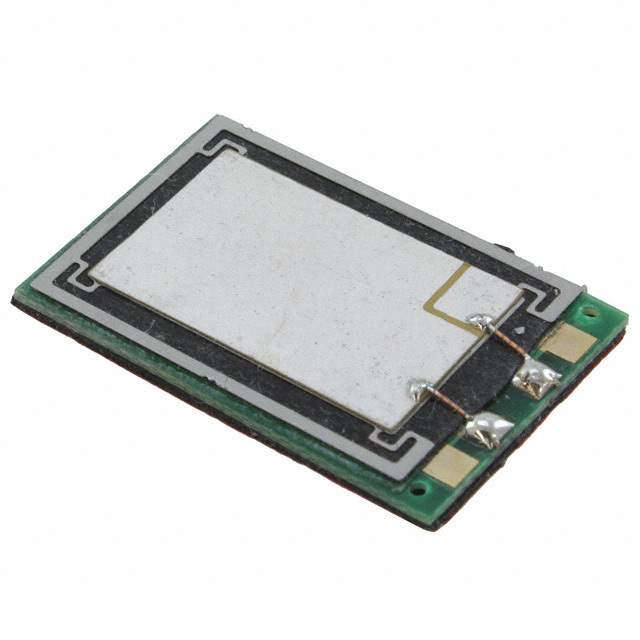

APS2513S-T-R Real Image
Same model may have multiple batches, images only for reference.

APS2513S-T-R

Part No APS2513S-T-R
Manufacturer PUI Audio, Inc.
Catalog Speakers
Description SPEAKER 3OHM TOP PORT 83DB RECT
Datasheet
APS2513S-T-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer PUI Audio, Inc.
Packaging Tray
Status Active
Type Piezo
Frequency Range 300Hz to 20kHz
Impedance 3 Ohm
Sound Pressure Level (SPL) 83dB
Port Location Top
Shape Rectangular
Termination Solder Pads
Height - Seated (Max) 0.071" (1.80mm)
Win Source Part Number 1089990-APS2513S-T-R
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian APS2513S-T-R CAD Model

Description

The PUI Audio APS2513S-T-R piezo transducer is a rectangular component designed for use in audio products.

  • Impedance: 3 Ohm
  • Frequency Range: 300Hz to 20kHz
  • Sound Pressure Level: 83dB
  • Temperature Range: -30°C to 70°C
  • Height: 0.071 inches
  • Termination: Solder pads
