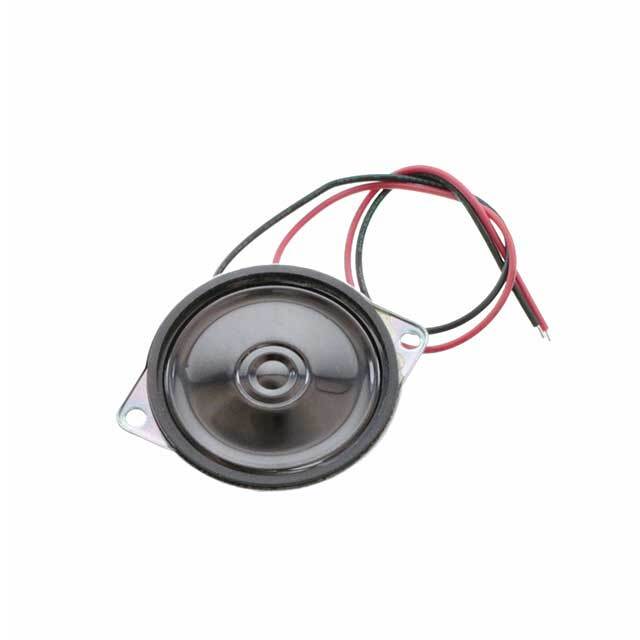

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Product Status Obsolete
Technology Magnetic
Type Low Profile
Frequency Range 550 Hz ~ 13 kHz
Frequency - Self Resonant 550Hz
Impedance 8 Ohms
Efficiency - dBA 89.00
Efficiency - Testing 1W/500mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 200 mW
Power - Max 400 mW
Port Location Top
Shape Round
Material - Cone Polyester, Polyethylene Terephthalate (PET)
Material - Magnet Nd-Fe-B
Termination Solder Pads
Size / Dimension 1.181" Dia (30.00mm)
Height - Seated (Max) 0.157\
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1547178-CLS0301MA
Ultra Librarian 3D Model Ultra Librarian CLS0301MA CAD Model
