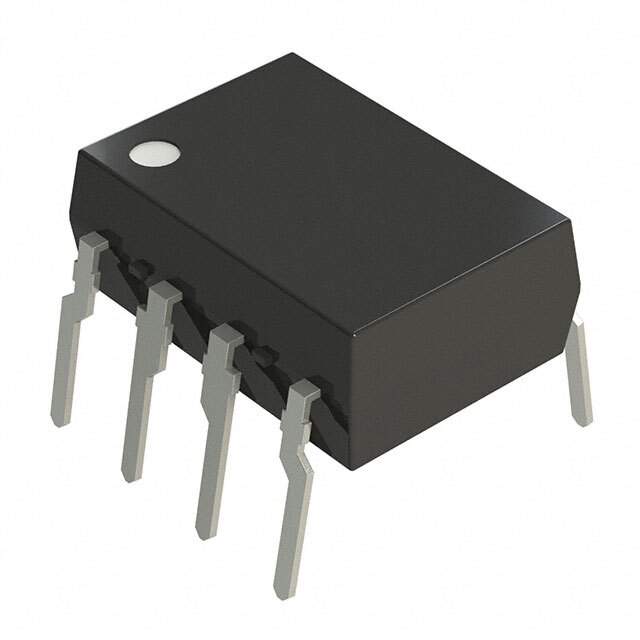

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Relays
Manufacturer CEL
Packaging Tube/Rail
Status Obsolete(EOL)
Circuit DPST (2 Form A)
Output Type AC, DC
Max On Resistance 35 Ohm
Load Current 120mA
Voltage - Input 1.2VDC
Voltage - Load 0 to 400 V
Mounting Through Hole
Termination Style PC Pin
Case / Package 8-DIP
Relay Type Relay
Win Source Part Number 281297-PS7141C-2A
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian PS7141C-2A CAD Model

Description

The CEL 281297-PS7141C-2A is a DPST (2 Form A) AC/DC relay with a load current of 120mA and a voltage load of 0 to 400 V.

  • Mounting Style: through-hole
  • Termination Style: PC pin
  • Voltage Input: 1.2VDC
  • Package: 8-DIP
  • Suitable for: use in industrial applications
  • Supply and demand status: limited
