Same model may have multiple batches, images only for reference.

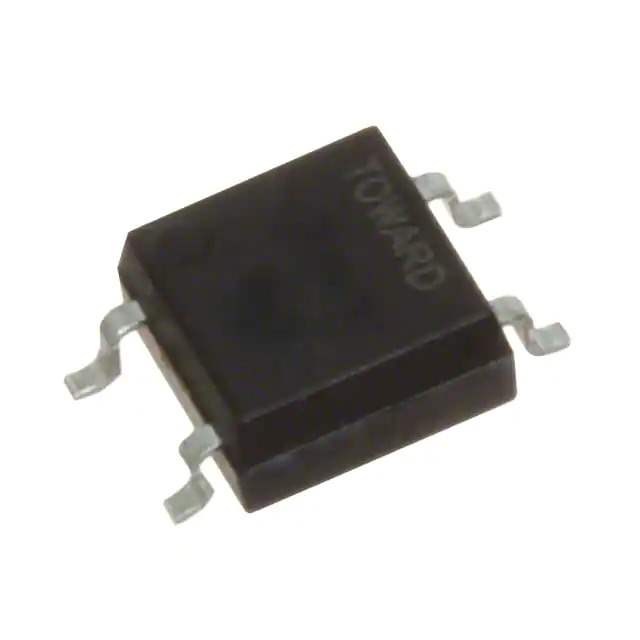

AB47S Real Image
Same model may have multiple batches, images only for reference.

AB47S

Part No AB47S
Manufacturer Comus International
Catalog Solid State Relays
Description SSR RELAY SPST-NO 1.25A 0-80V / Solid State SPST-NO (1 Form A) 4-SOP (0.173", 4.40mm)
Datasheet
AB47S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Comus International
Series 47
Package Tube
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.37VDC
Voltage - Load 0 V ~ 80 V
Load Current 1.25 A
On-State Resistance (Max) 500 mOhms
Termination Style Gull Wing
Package / Case 4-SOP (0.173", 4.40mm)
Supplier Device Package 4-SOP
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0055
Win Source Part Number 859166-AB47S
Ultra Librarian 3D Model Ultra Librarian AB47S CAD Model

Description

The 859166-AB47S is a solid-state relay designed for various electronic applications.

  • Series: 47
  • Termination Style: Gull Wing
  • Mounting Type: Surface Mount
  • Standard Package: 100 pieces
  • Voltage Input: 1.37VDC
  • Output Type: AC and DC
  • Circuit Configuration: SPST-NO (1 Form A)
  • On-State Resistance (Max): 500 mOhms
  • Load Current: 1.25 A
  • Voltage Load: 0 V to 80 V
  • Package: 4-SOP
  • Package Size: 0.173" (4.40mm)
  • Manufacturer: Comus International
  • Status: Active
