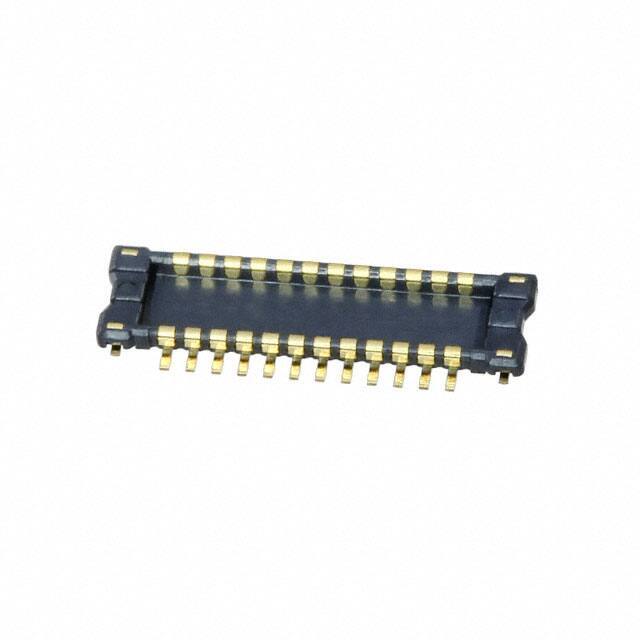

Part No AXE424124
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HDR 24POS SMD GOLD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series A4F
Package Bulk
Product Status Obsolete
Connector Type Header, Outer Shroud Contacts
Number of Positions 24
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.6mm
Height Above Board 0.018" (0.46mm)
Base Product Number AXE424
Standard Package 5,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862727-AXE424124
Ultra Librarian 3D Model Ultra Librarian AXE424124 CAD Model

Description

The AXE424124 is a rectangular connector array from the A4F series manufactured by Panasonic. It features 24 positions and a pitch of 0.016" (0.40mm), providing high-density interconnectivity.

  • Series: A4F
  • Positions: 24
  • Pitch: 0.016" (0.40mm)
  • Connector Type: Header with outer shroud contacts
  • Mounting Type: Surface mount
  • Contact Finish: Gold
  • Mated Stacking Height: 0.6mm
  • Height Above the Board: 0.018" (0.46mm)
  • Package Type: Bulk
  • Standard Package: 5,000 pieces
  • Status: Obsolete product
