Same model may have multiple batches, images only for reference.

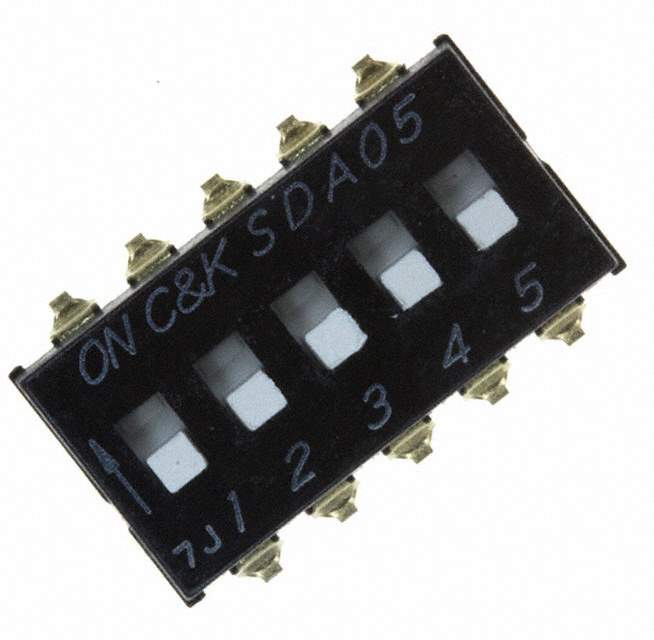

SDA05H1SBD Real Image
Same model may have multiple batches, images only for reference.

SDA05H1SBD

Part No SDA05H1SBD
Manufacturer C&K Components
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V
Datasheet
SDA05H1SBD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Estimated Pruduction Lead Time 18 Weeks
Features Dip Switch SPST Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Manufacturer C&K Components
Series SDA
Package Tube
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Family Name SDA05H
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number *SDA05H1SBD, CKN6074
Quantity per package 30
Popularity High
Supply and Demand Status Balance
Win Source Part Number 893942-SDA05H1SBD
Ultra Librarian 3D Model Ultra Librarian SDA05H1SBD CAD Model

Description

The C&K Components SDA05H1SBD is a dip switch that is SPST position surface mount slide (standard) actuator.

  • Series: SDA
  • Operating Temperature: -40°C to 85°C
  • Supply and Demand Status: Balance
  • Estimated Production Lead Time: 18 weeks
  • Popularity Rating: High
  • MSL Level: 1 (Unlimited)
  • REACH: Not affected
  • ECCN: EAR99
  • Suitable for: Use in various applications
  • Quantity per Package: 30
