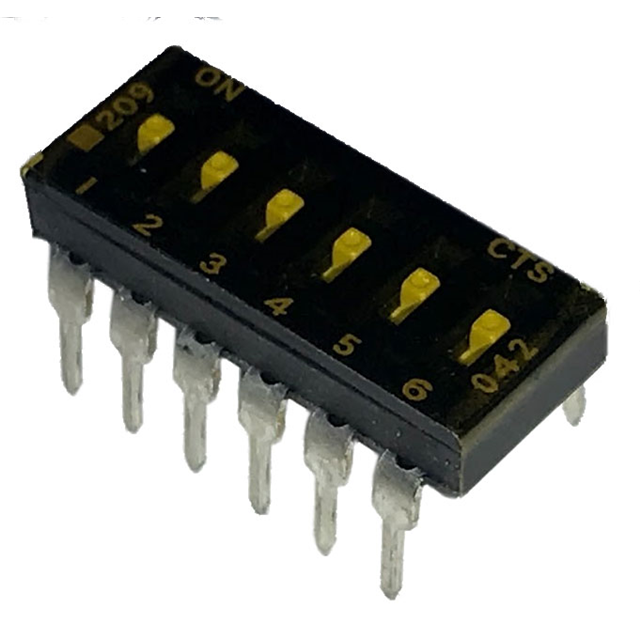

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr CTS Electrocomponents
Series 209
Package Tube
Circuit SPST
Number of Positions 6
Current Rating (Amps) 100mA
Voltage Rating 20VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.180" (4.57mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Length 0.658" (16.71mm)
Electrical Life 2,000 Cycles
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 209006LPST,CT2096LPST,2096LPST,CT2096LPST-NDR
Standard Package 30
Win Source Part Number 1035669-209-6LPST
Ultra Librarian 3D Model Ultra Librarian 209-6LPST CAD Model

Description

The 1035669-209-6LPST is a DIP switch manufactured by CTS Electrocomponents.

  • Win Source Part Number: 1035669-209-6LPST
  • Series: 209
  • Positions: 6
  • Pitch: 0.100" (2.54mm), Full
  • Termination Style: PC Pin
  • Plating: Gold
  • Voltage Rating: 20VDC
  • Current Rating: 100mA
  • Height Above Board: 0.180" (4.57mm)
  • Length: 0.658" (16.71mm)
  • Circuit: SPST
  • Actuator Type: Slide (Standard)
  • Actuator Level: Flush, Recessed
  • Washable: Yes
  • Mounting Type: Through-Hole
  • Operating Temperature: -40°C ~ 85°C
  • REACH: Unaffected
  • ECCN: EAR99
  • Alternative Parts (Cross-Reference): 210-6MS, 209-6MS, 210-5MS, SDA06H0BD, SDA06H1KD, SDA07H1BD2096LPST
  • Packaging: Tube
  • Standard Package: 30
