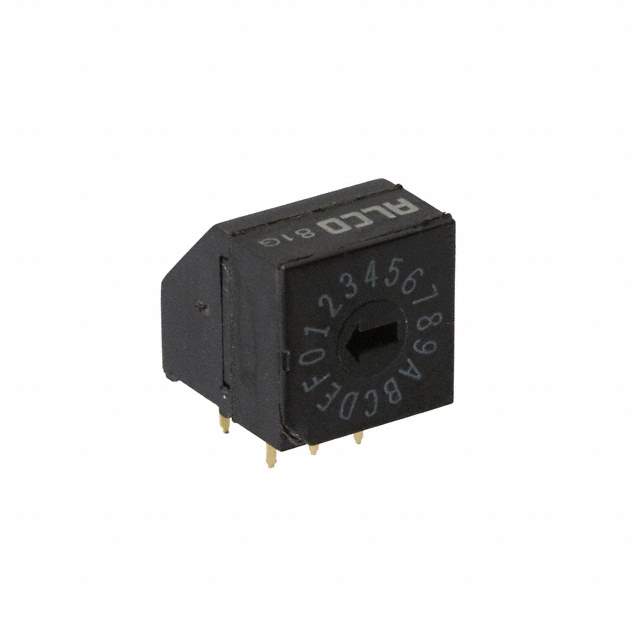

1825008-4 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series DRD
Package Bulk
Circuit Hexadecimal
Number of Positions 16
Current Rating (Amps) 0.4VA
Voltage Rating 20VAC/DC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.413" (10.50mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -30°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.394" (10.00mm)
Mechanical Life 10,000 Steps
Electrical Life 10,000 Steps
Base Product Number 1825008
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9065
Other Names DRD16RAE04-ND,DRD16RAE04,2266-1825008-4
Standard Package 45
Win Source Part Number 976794-1825008-4
Ultra Librarian 3D Model Ultra Librarian 1825008-4 CAD Model

Description

The TE Connectivity DRD16RAE04-ND is a DIP switch designed for use in electronic circuits.

  • Positions: 16
  • Pitch: 0.100" (2.54mm)
  • Voltage Rating: 20VAC/DC
  • Current Rating: 0.4VA
  • Electrical Life: 10,000 steps
  • Mechanical Life: 10,000 steps
  • Actuator Level: Flush and recessed
  • Washable: Yes
  • Temperature Range: -30°C to 85°C
