Same model may have multiple batches, images only for reference.

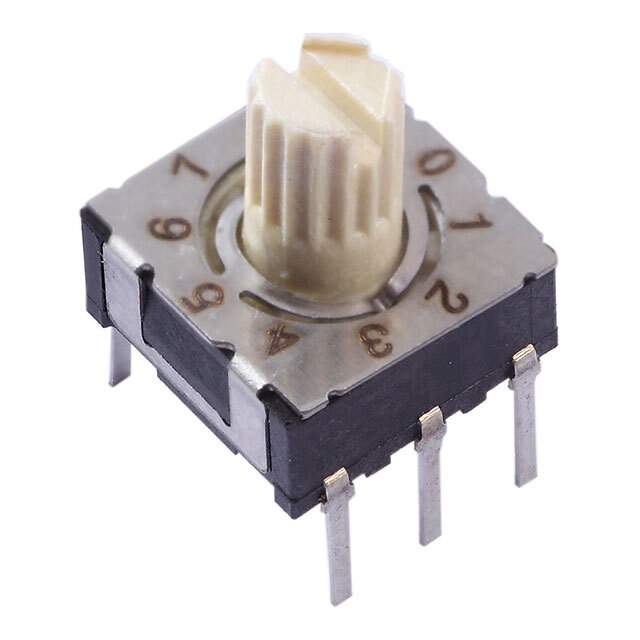

220ADC10 Real Image
Same model may have multiple batches, images only for reference.

220ADC10

Part No 220ADC10
Manufacturer CTS Electrocomponents
Catalog DIP Switches
Description SWITCH ROTARY DIP BCD 100MA 50V / Dip Switch BCD 10 Position Through Hole Rotary with Shaft Actuator 100mA 50VDC
Datasheet
220ADC10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr CTS Electrocomponents
Series 220
Package Tube
Circuit BCD
Number of Positions 10
Current Rating (Amps) 100mA
Voltage Rating 50VDC
Actuator Type Rotary with Shaft
Actuator Level Raised
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.321" (8.15mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Length 0.283" (7.20mm)
Mechanical Life 10,000 Steps
Electrical Life 10,000 Steps
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names CT3069
Standard Package 66
Win Source Part Number 1035819-220ADC10
Ultra Librarian 3D Model Ultra Librarian 220ADC10 CAD Model

Description

The 220ADC10 is a DIP switch with 10 positions and a pitch of 0.100" (2.54mm), full.

  • Product Name: 220ADC10
  • Positions: 10
  • Pitch: 0.100" (2.54mm)
  • Mounting Type: Through-Hole
  • Voltage Rating: 50VDC
  • Contact Finish: Gold
  • Package: Tube
  • Operating Temperature Range: -40°C to 85°C
  • Category: Switch
  • ECCN: EAR99
  • MSL Level: Not Applicable
  • Current Rating: 100mA
  • HTSUS Code: 8536.50.9065
