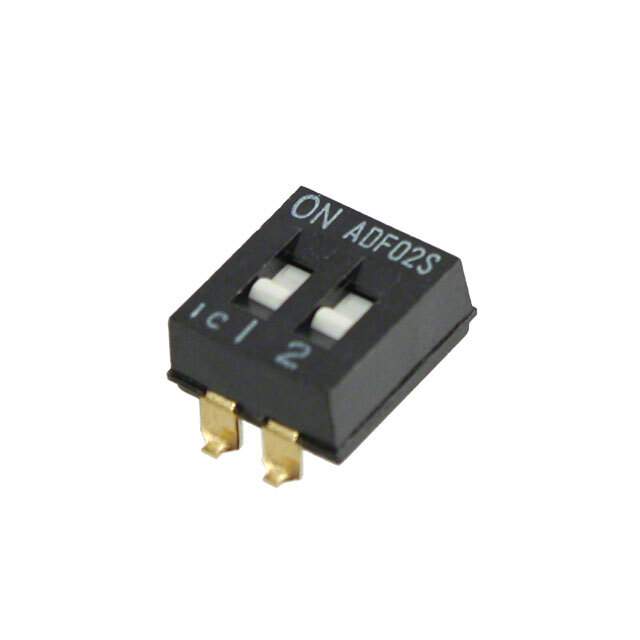

1825059-1 Real Image
Same model may have multiple batches, images only for reference.

1825059-1

Part No 1825059-1
Manufacturer TE Connectivity
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V  /  Dip Switch SPST 2 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series ADF
Package Tube
Circuit SPST
Number of Positions 2
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.177" (4.50mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Temperature Range - Operating -30°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.278" (7.06mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number 1825059
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.50.9065
Other Names ADF02S04,2266-1825059-1
Standard Package 60
Win Source Part Number 979076-1825059-1
Ultra Librarian 3D Model Ultra Librarian 1825059-1 CAD Model

Description

The TE Connectivity ALCOSWITCH ADF series DIP switch is a high-quality component ideal for a wide range of applications.

  • Positions: 2
  • Pitch: 0.100" (2.54mm)
  • Termination Style: Gull-wing
  • Contact Finish: Gold
  • Body Material: Polyphenylene sulfide (PPS)
  • Voltage Rating: 24VDC
  • Mounting: SMD (SMT)
  • Height Above Board: 0.177" (4.50mm)
  • Length: 0.278" (7.06mm)
  • Actuator Type: Slide (standard)
  • Actuator Level: Flush or recessed
  • Washable: Yes
  • Electrical Life: 1,000 cycles
  • Mechanical Life: 1,000 cycles
  • Current: 25mA
