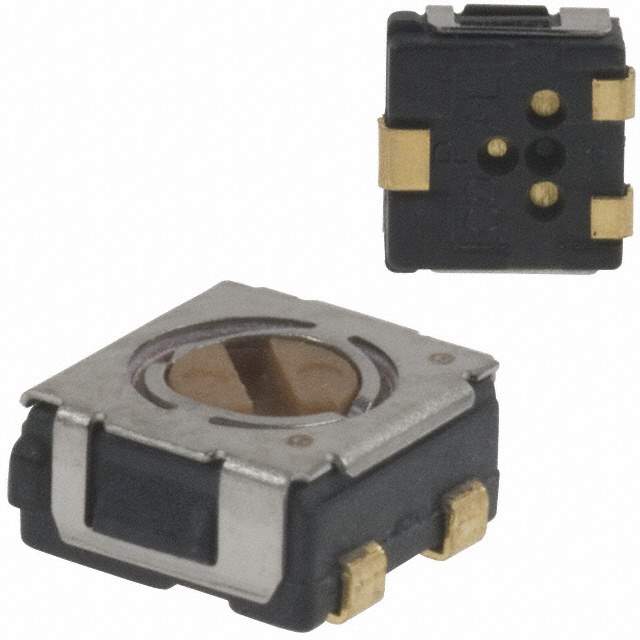

CS-4-12YTA Real Image
Same model may have multiple batches, images only for reference.

CS-4-12YTA

Part No CS-4-12YTA
Manufacturer Copal Electronics Inc.
Catalog DIP Switches
Description SWITCH ROTARY DIP SPDT 100MA 16V
Datasheet
CS-4-12YTA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Packaging Reel - TR
Status Active
Circuit SPDT
Number of Positions 2
Current Rating 100mA
Voltage Rating 16VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Finish Gold
Height Above Board 0.091" (2.30mm)
Mounting SMD (SMT)
Termination Style J Lead
Washable Yes
Body Material Epoxy
Length 0.197" (5.00mm)
Temperature Range - Operating -25°C to 70°C
Electrical Life 200 Cycles
Win Source Part Number 131768-CS-4-12YTA
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CS-4-12YTA CAD Model

Description

CS-4-12YTA

The CS-4-12YTA is engineered for superior durability and efficiency, making it a perfect choice for demanding applications that require precise control and longevity.

  • Industrial Automation
  • Robotics Control Systems
  • Communication Devices

Features and Benefits

  • Extended temperature range for harsh environments
  • Rapid response time for fast processing needs
  • Robust construction to withstand mechanical stress
  • Compatible with various industry standards

Its robust design and cutting-edge features make the CS-4-12YTA a preferred choice for complex electronic projects.
