Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube
Status Obsolete
Function Volume Control
Applications Consumer Audio, Professional Audio
Number of Channels 2
Interface SPI
Supply Voltage (V) 4.5V ~ 12V
Temperature Range - Operating 0°C ~ 70°C
Specifications 78dB
Manufacturer Package 20-DIP
Supplier Device Package 20-DIP
Family Part Number LM1972
Manufacturer Pack Quantity 18
MSL Level 3 (168 Hours)
Win Source Part Number 1196976-LM1972N
Manufacturer Homepage www.national.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM1972N CAD Model

Description

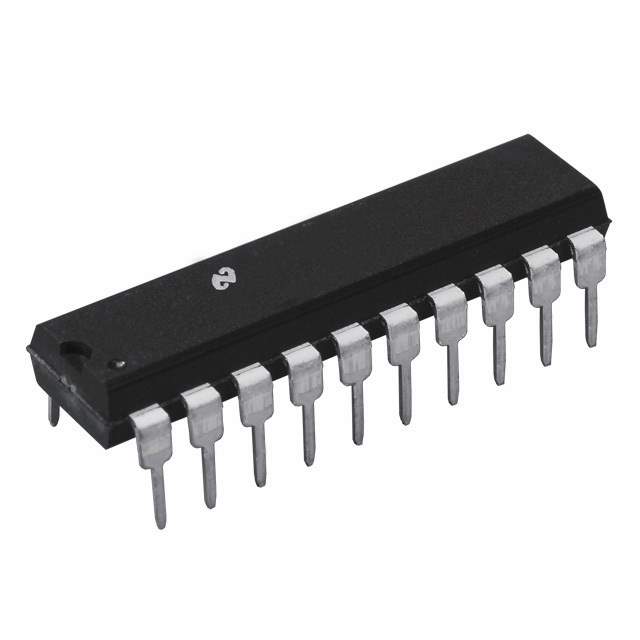

The LM1972N is a high-performance audio attenuator integrated circuit from Texas Instruments, designed to provide precise volume control in advanced audio systems. This digital-controlled analog volume control integrates advanced features and robust design to deliver a superior audio experience.

Key Features

  • High Quality: The LM1972N offers exceptional audio quality with a total harmonic distortion plus noise (THD+N) of 0.001% at 1kHz, ensuring crystal clear sound reproduction.
  • Wide Attenuation Range: It provides a wide attenuation range of 78dB in 1dB steps, giving users precise control over volume levels.
  • Channel Separation: With excellent channel separation, the device maintains stereo integrity by minimizing crosstalk between channels.
  • Low Noise: The device boasts a low noise performance, which is critical for high-fidelity audio applications.
  • Multiple Input Channels: It features two stereo input channels, allowing for versatile use in different audio setups.
  • Simple Interface: The LM1972N can be controlled via a simple serial interface, making it easy to integrate into various systems.

Applications

The LM1972N is ideal for a multitude of audio applications where volume control is essential. It is commonly used in:

  • Professional audio mixing consoles
  • Home theater systems
  • Hi-Fi audio equipment
  • Automotive audio systems

Technical Specifications

Parameter Value Supply Voltage ±5V to ±15V Operating Temperature -20°C to +85°C Package Type 20-DIP (0.300", 7.62mm) Mounting Type Through Hole

With its combination of performance, quality, and ease of use, the LM1972N from Texas Instruments stands out as a top choice for designers and engineers looking to create or upgrade their audio systems.
