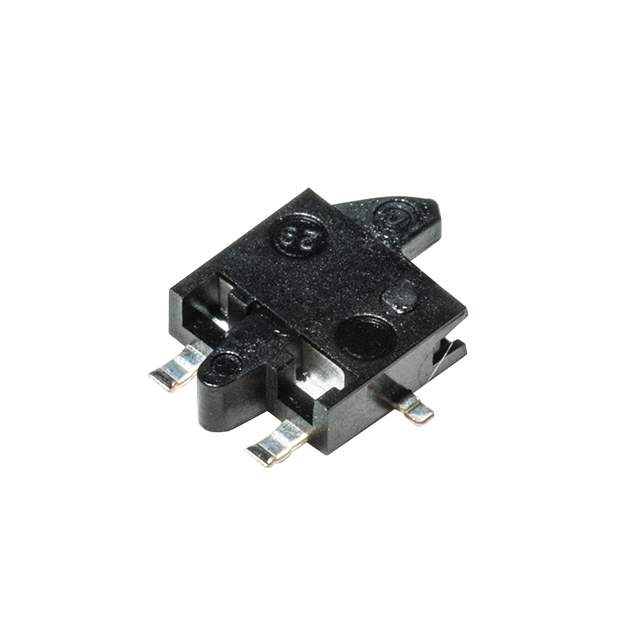

HDP001R

Name: HDP001R
Brand: C&K Components
SKU: 1171396
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HDP001R
Manufacturer	C&K Components
Catalog	Snap Action, Limit Switches
Description	SWITCH DETECTOR SPST-NO 1MA 5V / Switch SPST-NO Surface Mount, Right Angle
Datasheet	HDP001R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches>Limit Switches
Mfr	C&K
Series	HDP
Package	Tape & Reel
Circuit	SPST-NO
Switch Function	Off-Mom
Current Rating (Amps)	1mA (DC)
Voltage Rating - DC	5 V
Actuator Type	Angled Toggle (Detector)
Mounting Type	Surface Mount, Right Angle
Termination Style	Gull Wing
Features	Board Guide
Pretravel	0.006" (0.15mm)
Temperature Range - Operating	-20°C ~ 70°C
Operating Position	0.117" (2.96mm)
Electrical Life	100,000 Cycles
Mechanical Life	100,000 Cycles
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.7000
Other Names	*HDP001R,CKN10548DKR,CKN10548CT,CKN10548TR
Standard Package	2,500
Win Source Part Number	1171396-HDP001R
Ultra Librarian 3D Model	Ultra Librarian HDP001R CAD Model

Description

The HDP001R is a switch from C&K.

Win Source Part Number: 1171396
Category: switches>limit switches
Series: HDP
Termination Style: gull wing
Board Guide Features: yes
Package: tape & reel
Ingress Protection: -
Voltage Rating - DC: 5 V
Standard Package: 2,500
Circuit: SPST-NO
Switch Function: Off-Mom
Actuator Type: angled toggle (detector)
Electrical Life: 100,000 cycles
Pretravel: 0.006" (0.15mm)
Operating Position: 0.117" (2.96mm)
Mounting Type: surface mount, right angle
Operating Temperature Range: -20°C ~ 70°C
MSL Level: 1 (Unlimited)
Current Rating (Amps): 1mA (DC)
REACH Status: REACH unaffected
HTSUS: 8536.50.7000
