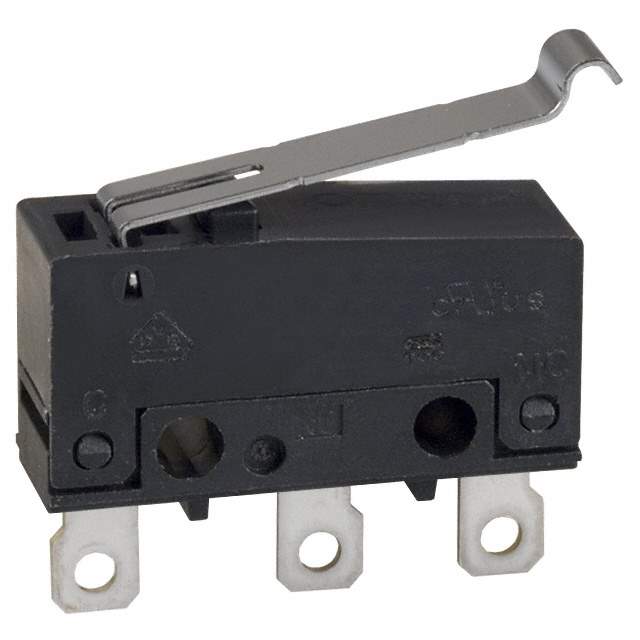

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS-P
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 51gf
Release Force 5.099gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.039" (1.0mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.420" (10.7mm)
Electrical Life 200,000 Cycles
Mechanical Life 1,000,000 Cycles
Base Product Number SS-01GL
Other Names SS01GL13PBYOMZ,SS-01GL13P BY OMZ,SW777,2266-SS-01GL13P,SS01GL13P
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233419-SS-01GL13P
Ultra Librarian 3D Model Ultra Librarian SS-01GL13P CAD Model

Description

The Omron Electronics Inc-EMC Div SS-01GL13PBYOMZ is a switch component that is designed for use in various applications.

  • Series: SS-P
  • Packaging: Tray
  • Ingress Protection: IP40
  • Voltage Rating: 125V AC, 30V DC
  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever with Simulated Roller
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 1,000,000 cycles
  • Operating Force: 51gf
  • Release Force: 5.099gf
  • Differential Travel: 0.031" (0.8mm)
  • Overtravel: 0.039" (1.0mm)
  • Operating Position: 0.420" (10.7mm)
  • Mounting: Chassis Mount
  • Temperature Range: -25°C to 85°C
  • Base Product Number: SS-01GL
