Products specifications

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Straight
Mounting Type Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force 12gf
Release Force 2.039gf
Differential Travel 0.047" (1.2mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.345" (8.8mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-5
Other Names SS-5GL111-FD,Z4574,SS5GL111FD,-SS-5GL111-FD,SS5GL111FDBYOMI
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233549-SS-5GL111-FD
Ultra Librarian 3D Model Ultra Librarian SS-5GL111-FD CAD Model

Description

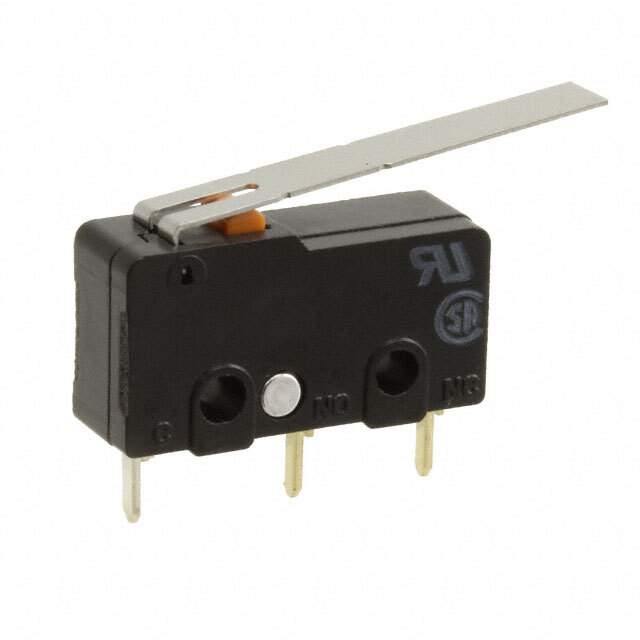

The Omron Electronics Inc-EMC Div SS-5GL111-FD is a limit switch with SPDT circuit and on-mom switch function.

  • Actuator Type: Lever, Straight
  • Electrical Life: 200,000 cycles
  • Mechanical Life: 30,000,000 cycles
  • Mounting Type: Through Hole
  • Temperature Range: -25°C ~ 85°C
  • Popularity: Low
  • MSL Level: 1 (Unlimited)
  • Current Rating: 5A (AC)
  • Circuit: SPDT
  • Switch Function: On-Mom
