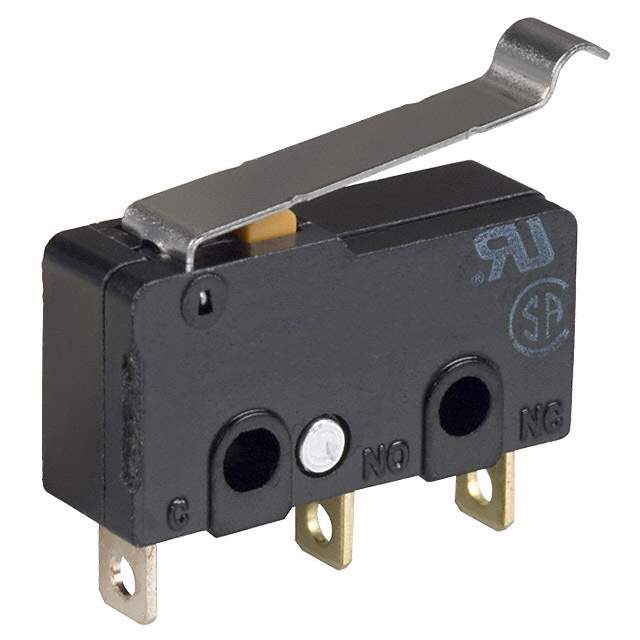

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 8.158gf
Release Force 1.020gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.420" (10.7mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-01GL
Other Names SS-01GL-13-E,-SS-01GL13,SS01GL13E
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233483-SS-01GL13-E
Ultra Librarian 3D Model Ultra Librarian SS-01GL13-E CAD Model

Description

The Omron Electronics Inc-EMC Div SS-01GL13-E is a limit switch that has a circuit of SPDT and a switch function of On-Mom.

  • Actuator Type: Lever, Simulated Roller
  • Electrical Life: 200,000 cycles
  • Operating Force: 8.158gf
  • Mechanical Life: 30,000,000 cycles
  • Release Force: 1.020gf
  • Differential Travel: 0.031" (0.8mm)
  • Overtravel: 0.047" (1.2mm)
  • Operating Position: 0.420" (10.7mm)
  • Mounting Type: Chassis Mount
  • Operating Temperature Range: -25°C to 85°C
