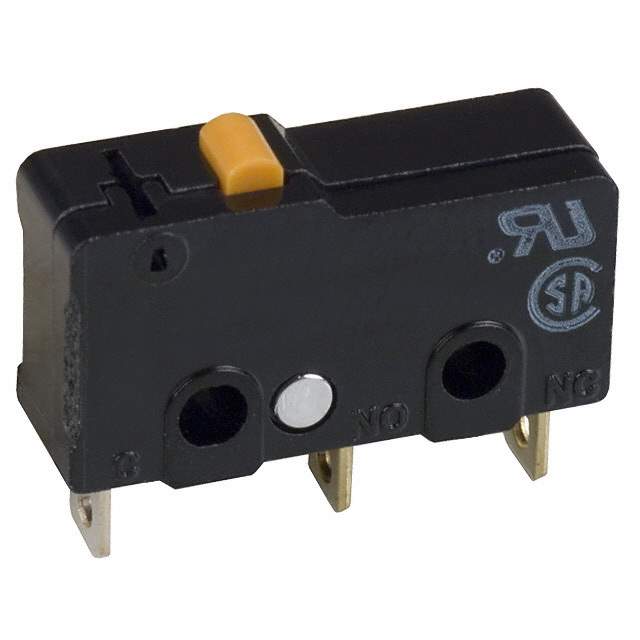

SS-01GL14 Real Image
Same model may have multiple batches, images only for reference.

SS-01GL14

Part No SS-01GL14
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V / Switch SPDT Chassis Mount
Datasheet
SS-01GL14 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Omron Electronics Inc-EMC Div
Series SS
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Lever, Formed
Mounting Type Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force 50gf
Release Force 6.118gf
Differential Travel 0.031" (0.8mm)
Overtravel 0.047" (1.2mm)
Temperature Range - Operating -25°C ~ 85°C
Operating Position 0.398" (10.1mm)
Electrical Life 200,000 Cycles
Mechanical Life 30,000,000 Cycles
Base Product Number SS-01GL
Other Names Q686480,2266-SS-01GL14,SS01GL14
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233485-SS-01GL14
Ultra Librarian 3D Model Ultra Librarian SS-01GL14 CAD Model

Description

The SS-01GL14 is a limit switch manufactured by Omron Electronics Inc-EMC Div.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever, Formed
  • Voltage Rating: 125V AC and 30V DC
  • Operating Force: 50gf
  • Release Force: 6.118gf
  • Mechanical Life: 30,000,000 cycles
  • Electrical Life: 200,000 cycles
  • Differential Travel: 0.031" (0.8mm)
  • Overtravel: 0.047" (1.2mm)
  • Operating Position: 0.398" (10.1mm)
  • Mounting: Chassis Mount
  • Operating Temperature: -25°C ~ 85°C
  • ECCN: EAR99
  • MSL Level: Not Applicable
  • HTSUS Code: 8536.50.7000
  • Other Names: Q686480, 2266-SS-01GL14, SS01GL14
