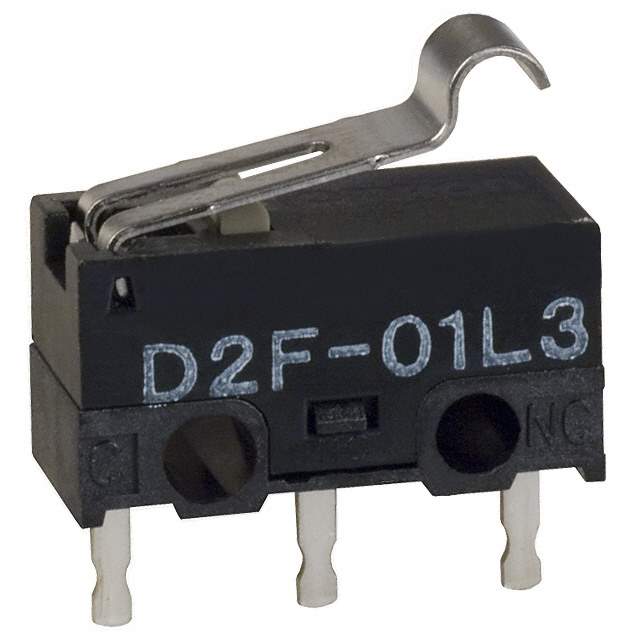

D2F-01L3 Real Image
Same model may have multiple batches, images only for reference.

D2F-01L3

Part No D2F-01L3
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 100MA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Bulk
Status Active
Circuit SPDT
Switch Function On-Mom
Current Rating 100mA (DC)
Voltage Rating - DC 30V
Actuator Type Lever, Simulated Roller
Mounting Through Hole
Termination Style PC Pin
Ingress Protection IP40
Operating Force, Torque 80gf
Release Force 5gf
Differential Travel 0.018" (0.45mm)
Overtravel 0.020" (0.5mm)
Operating Position 0.335" (8.5mm)
Mechanical Life 1,000,000 Cycles
Electrical Life 30,000 Cycles
Temperature Range - Operating -25°C to 65°C
Win Source Part Number 1032155-D2F-01L3
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian D2F-01L3 CAD Model

Description

The Omron Electronics Inc-EMC Div 1032155-D2F-01L3 is an SPDT circuit type electronic component that has a current rating of 100mA (DC).

  • Circuit Type: SPDT
  • Current Rating: 100mA (DC)
  • Mounting: Through-Hole
  • Ingress Protection: IP40
  • Voltage Rating: 30VDC
  • Operating Force: 80gf
